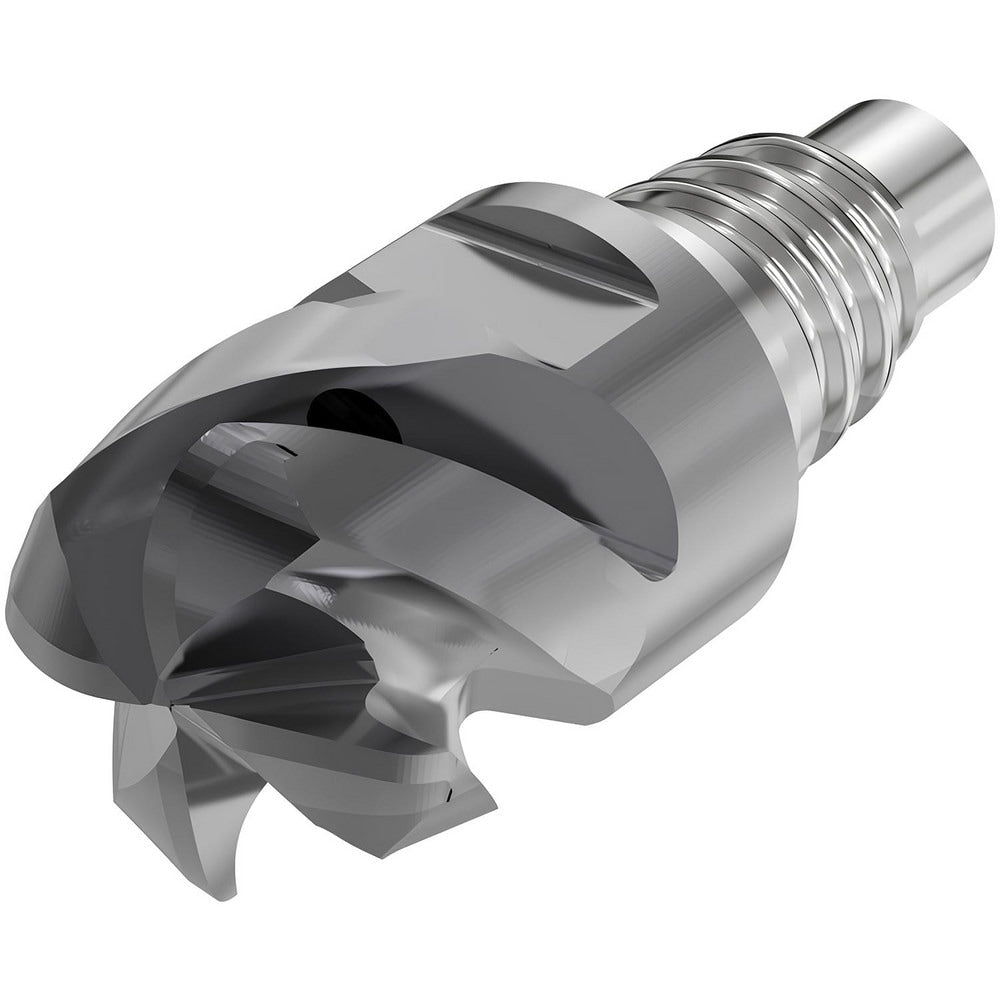

Brand: Seco / Part #: 10137972
Item #: 40067936
Brand: Seco
Model #: 10137972
Product Specifications
| Milling Tip Type | High Feed |
| Milling Tip Style | XHF |
| Maximum Depth of Cut (mm) | 0.80 |
| Cutting Diameter (mm) | 12.00 |
| Tool Material | HMG |
| Depth of Cut (mm) | 0.80 |
| Manufacturer Grade | SIRA |
| Insert Hand | Right Hand |
| Chipbreaker | None |
| Series | XHF |
| Coating Process | PVD |
| Corner Radius (mm) | 1.50 |
| Cutting Width (mm) | 12.000 |
| Primary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Milling Tip Full Description | XHF580E12120D1HZ4A |
| Extension From Holder (mm) | 14.50 |
| Thread Size | E12 |
| Lead Angle | 90 |
| Chamfer Angle | 0.000 |
| Insert Size | 12.00 mm |
| Length of Cut (mm) | 0.8000 |
| Helix Angle | 50 |
| Coolant Through | Yes |
| Mill Diameter (mm) | 12.00 |
| Overall Length (mm) | 28.3000 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Projection Length (Decimal Inch) | 0.5709 |
| Included Angle Degree | 90 |
| Coating/Finish | SIRON-A |
| Number Of Flutes | 4 |
| Length | 14.50 |
