Brand: Widia / Part #: 2968593
Item #: 99731051
Brand: Widia
Model #: 2968593
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 4 |
| Shank Width/Diameter (Inch) | 1 |
| Toolholder Style | LSSR |
| Insert Compatibility | LT22ER |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Decimal Inch) | 4.8000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | LT |
| Multi-use Tool | No |

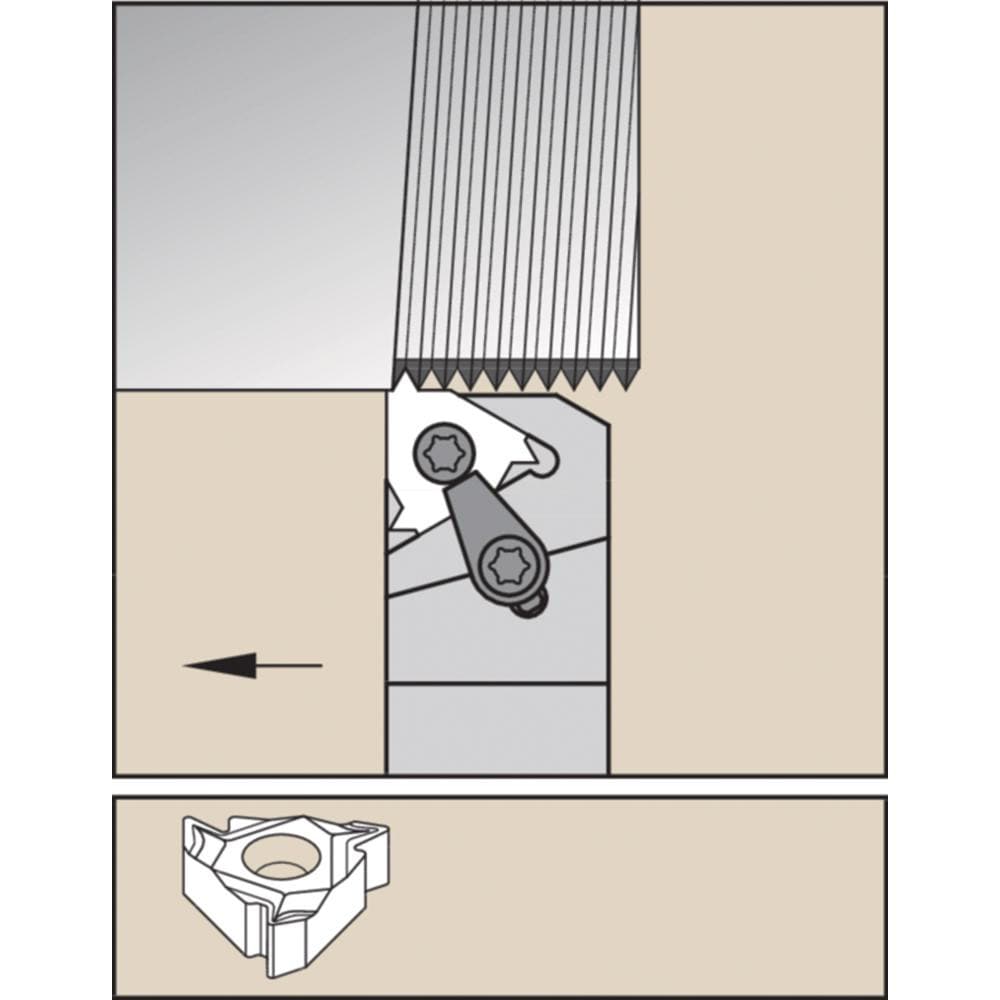

| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 1.2000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2402 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | LSSR164D |
| Style | LT |
| Coolant Through | No |
