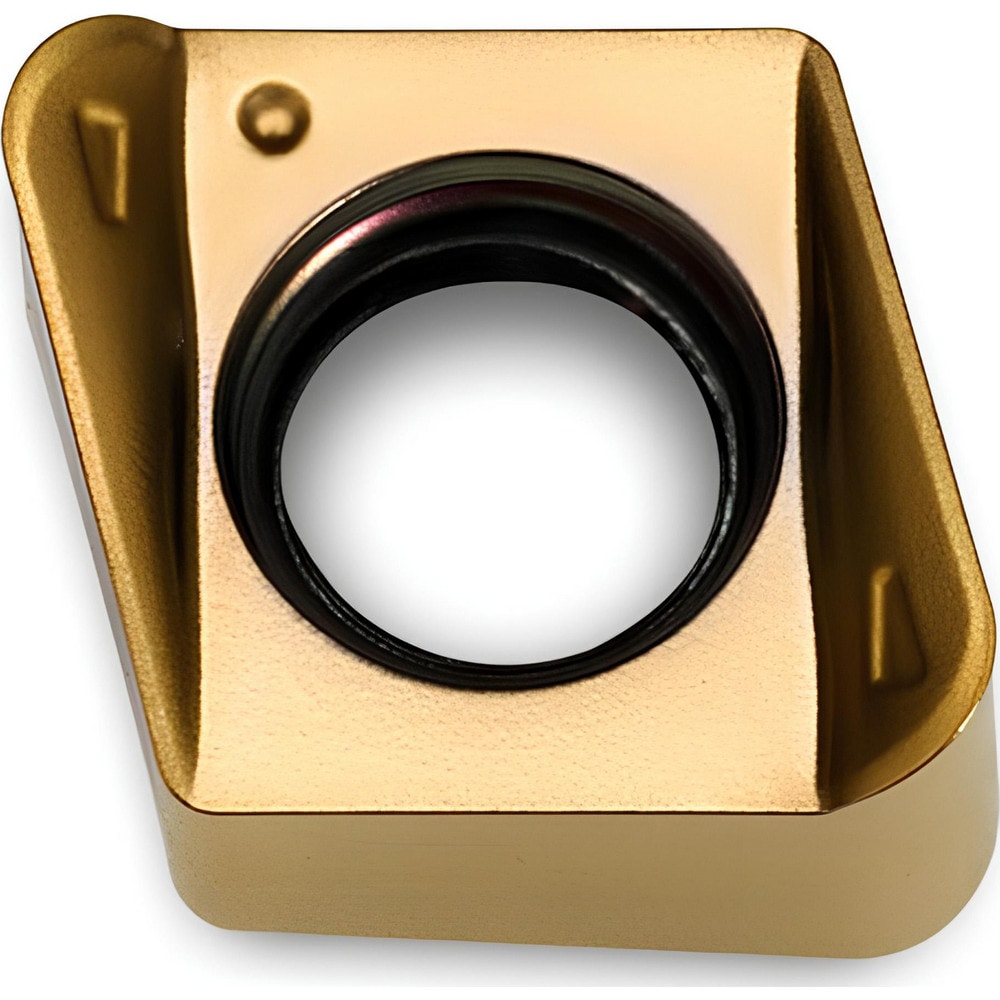

Brand: Ingersoll Cutting Tools / Part #: 6182498

Brand: Ingersoll Cutting Tools / Part #: 6182498


Item #: 67309856
Brand: Ingersoll Cutting Tools
Model #: 6182498

Product Specifications

Insert Style MNHU
Insert Size Code 060312
Insert Material Carbide
Manufacturer Grade IN2505
Inscribed Circle (Decimal Inch) 0.2600
Corner Radius (Inch) 3/64
Insert Hand Right Hand
Series MNHU
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.2200
Number Of Cutting Edges 4
Insert Shape Parallelogram
Rake Negative
Primary Workpiece Material Hard Material; Cast Iron; Steel
Primary Workpiece Material Code P; H; K
Ansi Code MNHU060312R
Rake Angle 0.000
Manufacturers Catalog Number MNHU060312R IN2505
Cutter Series Compatibility 1TJ1D; TJ1D; 1TV1D
Chip Breaker None
Cutting Direction Right Hand
Shape Parallelogram
Length of Cut (mm) 5.5900
Insert Holding Method Screw
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 86
Width (Decimal Inch - 4 Decimals) 0.2600
Thickness (Decimal Inch - 4 Decimals) 0.1770
Multi-Use Tool Yes
Length (Decimal Inch - 4 Decimals) 0.2600
$17.42
