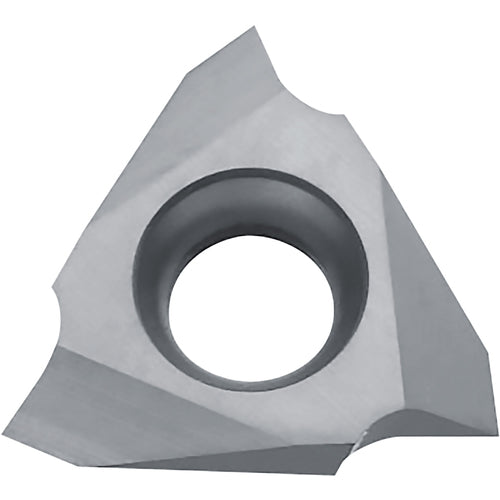

TT 32R6001 KW10 Grade Uncoated Carbide, Indexable Threading Insert
Item #: KY90TWE02800
Brand: Kyocera Precision Tools
Model #: TWE02800
| Product Specifications | |
|---|---|
| Thread Standard | Metric | UN |
| Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 1 mm - 2.5 mm |
| Application | External Threading | Internal Threading |
| Threads per Inch (TPI) | 24-10 | 16-10 |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Corner Radius (RE) | 0.004″ |
| Number of Teeth | 3 |
| Insert Thickness (S) | 1/8″ |
| Profile Included Angle (PNA) | 60 Degrees |
| Inscribed Circle Diameter (IC) | 3/8″ |
| Series/List # | KTT |
| Insert Size | 32 |
| Mounting Style | Screw |
| Grade | KW10 |
| Measurement Type | Inch | Metric |
| Coating | WC/Co |
| Insert Style | TT |
| Cutting Edge Material | Carbide |
| Coating Process | Uncoated |
| Cutting Position | Internal & External |
