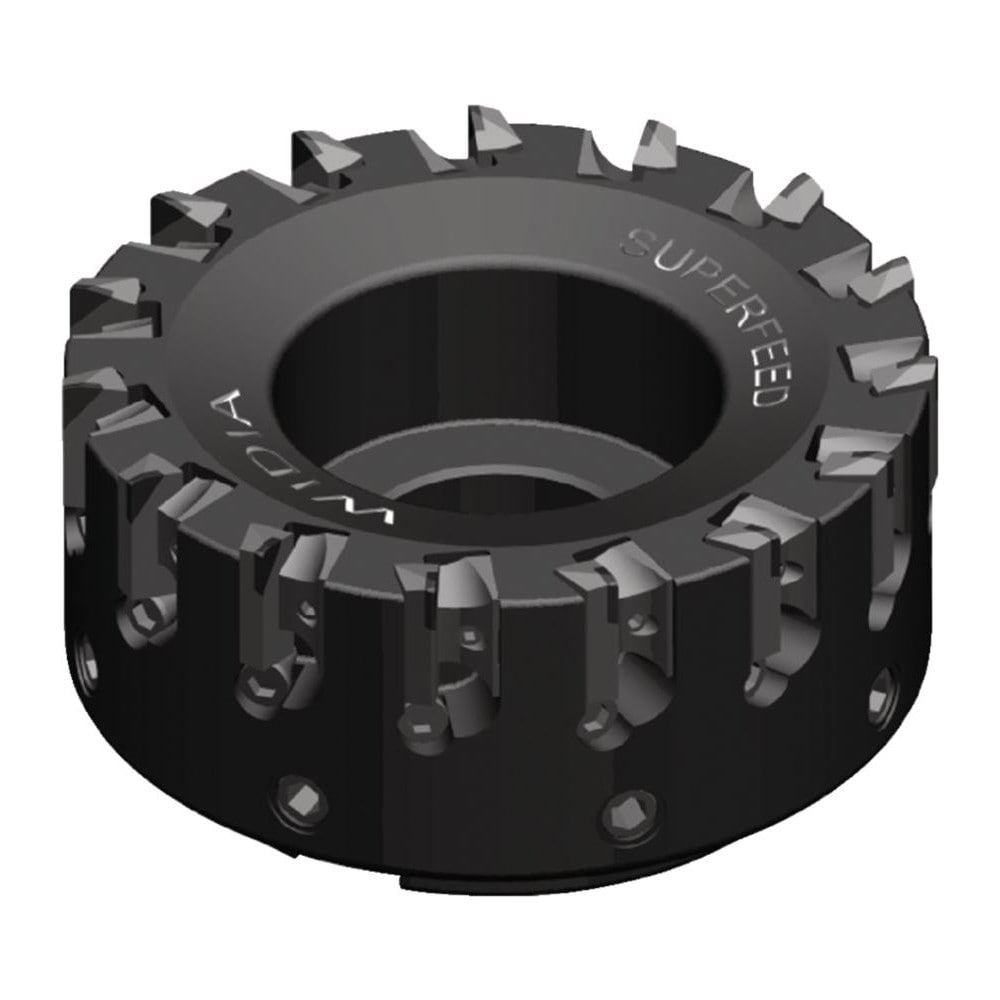

Brand: Widia / Part #: 6740600
Item #: 09968041
Brand: Widia
Model #: 6740600
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 6.35 |
| Arbor Hole Diameter (mm) | 22.01 |
| Compatible Insert Size Code | SDR1000 |
| Maximum Ramping Angle | 0 |
| Cutter Style | Superfeed |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Lead Angle | 90 |
| Rake | Positive |
| Series | Superfeed |
| Maximum Body Diameter (mm) | 27.00 |
| Overall Height (Mm - 5 Decimals) | 40.00000 |
| Keyway Width (mm) | 10.48 |
| Hub Diameter (mm) | 59.950 |
| Maximum RPM | 20000.000 |
| Tool Application | Facing; Milling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Number of Adjustable Pockets | 6 |
| ISO Number | SF06306RH |
| Complete Insert Compatibility | SDR1000 |
| Toolholder Material | Aluminum |
| Manufacturers Catalog Number | SF06306RH |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
