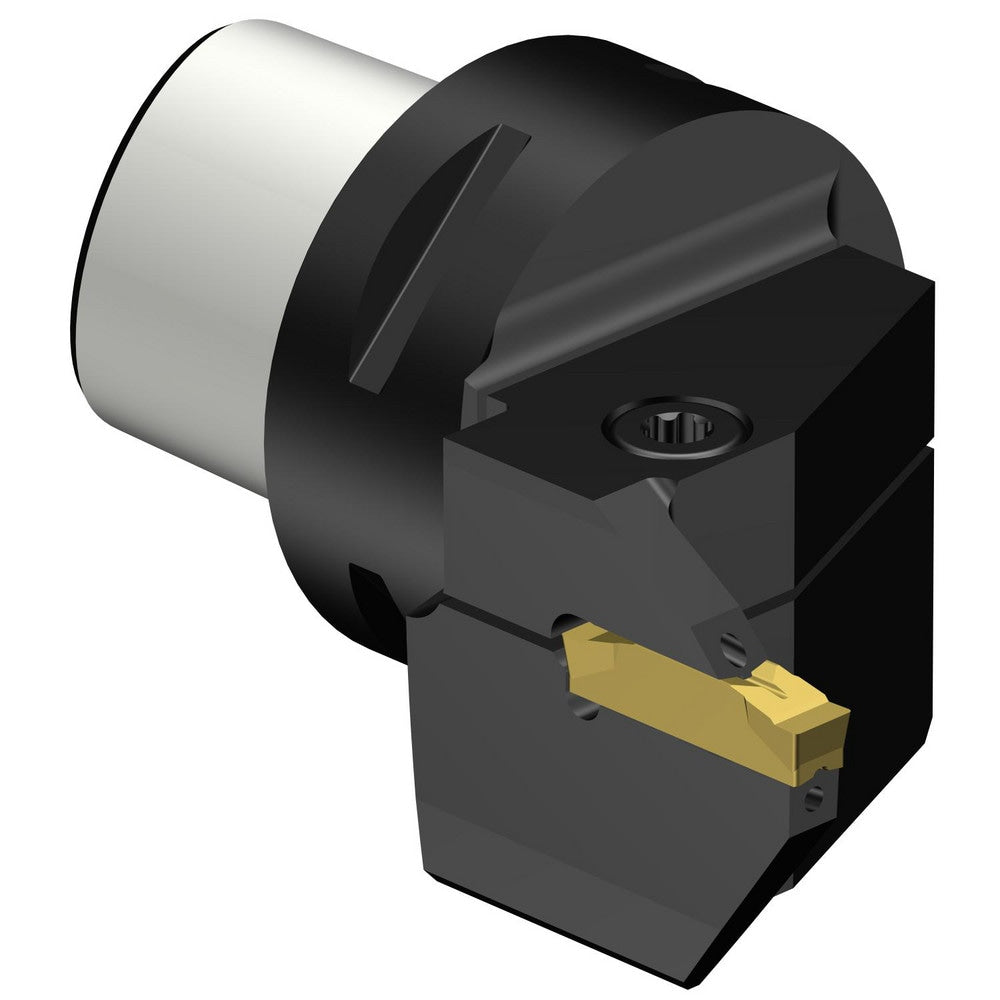

Modular Grooving Cutting Unit Heads; System Size: C5; Maximum Depth of Cut (Decimal Inch): 0.7087; Maximum Depth of Cut (mm): 18.00; Minimum Groove Width (Decimal Inch): 1.2992; Minimum Groove Width (mm): 33.00; Maximum Groove Width (Decimal Inch): 1.2992
Item #: 01689132
Brand: Sandvik Coromant
Model #: 8381868
Product Specifications
| System Size | C5 |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Minimum Groove Width (Decimal Inch) | 1.2992 |
| Minimum Groove Width (mm) | 33.00 |
| Maximum Groove Width (Decimal Inch) | 1.2992 |
| Maximum Groove Width (mm) | 33.00 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | C2I |
| Compatible Insert Size Code | K |
| Series | CoroCut 2 |
| Center to Cutting Edge (mm) | 33.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2992 |
| Blade Style Compatibility | None |
| Complete Insert Compatibility | CoroCut 2 -size H (C2I-H2-0400-) |
| Applications | Face Grooving |
| Head Length Projection (Decimal Inch) | 2.5591 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 65.00 |
| UNSPSC Code | 27112809 |
