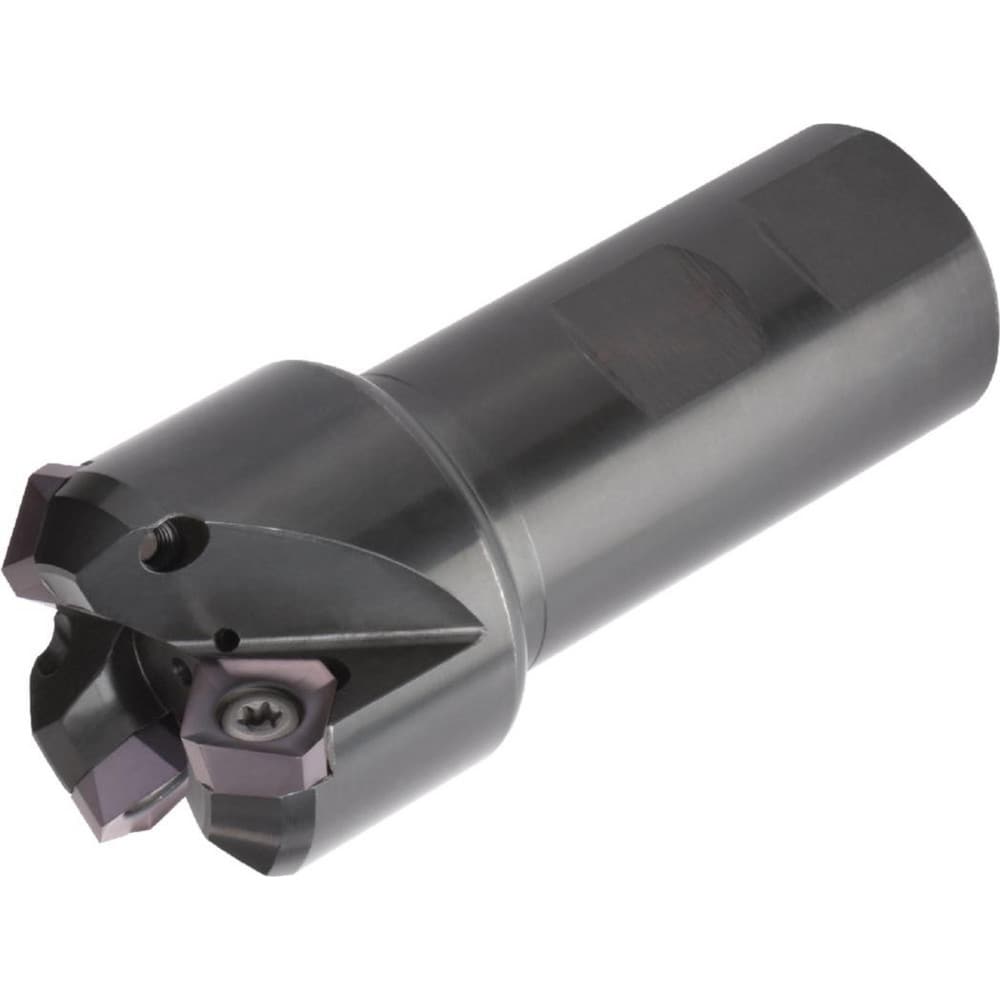

Brand: Widia / Part #: 2002367
Item #: 97060511
Brand: Widia
Model #: 2002367
Product Specifications
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 33.80 |
| Lead Angle | 45 |
| Maximum Depth of Cut (mm) | 6.35 |
| Compatible Insert Size Code | SN.T1205 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Number Of Cutter Inserts | 2 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Overall Length (mm) | 86.00 |
| Overall Height (Mm - 5 Decimals) | 86.00 |
| Series | M660 |
| Toolholder Style | 12396 |
| Functional Length (mm) | 30.00 |
| Maximum RPM | 17000 |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Through | Yes |
