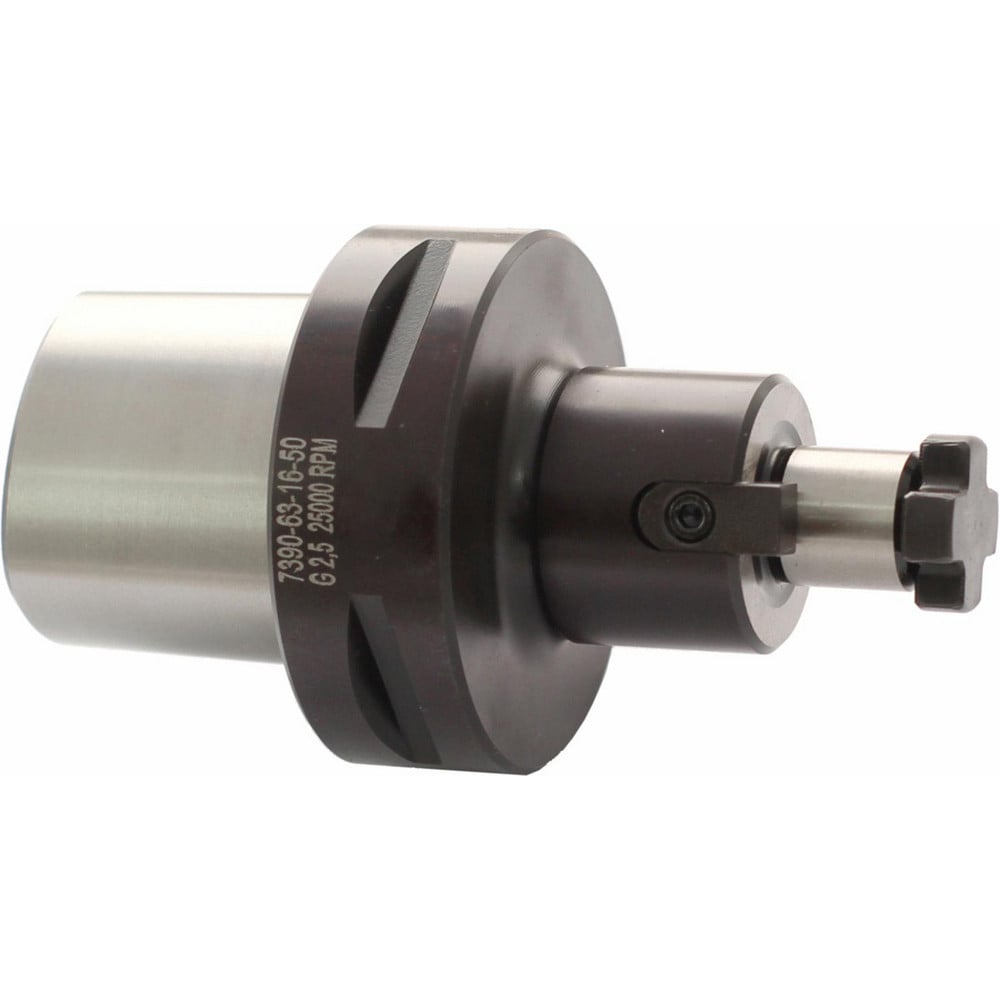

Brand: Bison / Part #: 7-148-500
Item #: 90891532
Brand: Bison
Model #: 7-148-500
Product Specifications
| Modular Connection Size | C5 |
| Overall Length (Decimal Inch) | 3.3400 |
| Overall Length (mm) | 84.8400 |
| Maximum RPM | 25000.000 |
| Projection Flange to Nose End (Decimal Inch) | 3.3400 |
| Projection Flange to Nose End (mm) | 84.84 |
| Taper Size | C5 |
| Pilot Diameter (Decimal Inch) | 1.5000 |
| Pilot Diameter (Inch) | 1-1/2 |
| Nose Diameter (Mm) ( - 2 Decimals) | 95.25 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 3.7500 |
| Through Coolant | Yes |
| TIR (mm) | 0.0050 |
| TIR (Decimal Inch) | 0.000200 |
| Overall Height (Decimal Inch) | 4.5200 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Balanced To Rpm | 25000 |
| Gage Overall Length (mm) | 84.84 |
| Overall Height (Mm - 5 Decimals) | 114.80000 |
| Gage Overall Length (Decimal Inch) | 3.3400 |
