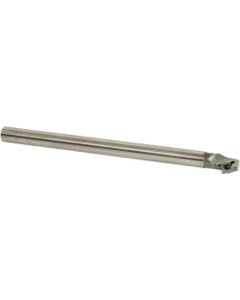

A20RSDZCL1127AE Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC11785
Brand: Kyocera Precision Tools
Model #: THC11785
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 200 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm |
| Rake Angle Axial (GAMP) | 3 Degrees |
| Head Length (LH) | 15 mm |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 19 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 185 mm |
| Body Material | Steel |
| Functional Width (WF) | 16.5 mm |
| Style | A...SDZC-AE |
| Master Insert Identification (MIID) | | DCGT325 | DCMX325 | DCMT325 | DCET325 | DCMW325 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 27 mm |
| Weight of Item (WT) | 1.0778 |
