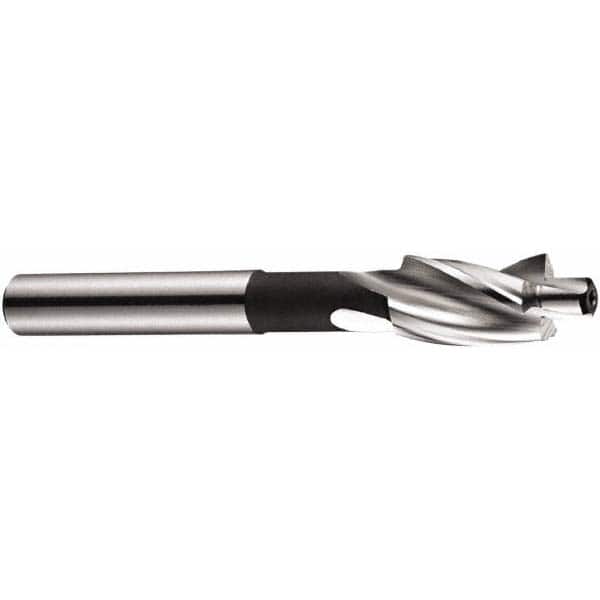

DORMER - High Speed Steel, Solid Pilot Counterbore
Item #: 65671844
Brand: DORMER
Model #: 0107782
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Counterbore Diameter (mm) | 8.00 |
| Counterbore Diameter (Decimal Inch) | 0.3152 |
| Counterbore Material | High Speed Steel |
| Finish/Coating | Bright |
| Shank Diameter (mm) | 5.00 |
| Shank Diameter (Decimal Inch) | 0.1970 |
| Number of Flutes | 3 |
| Aircraft-Style | No |
| Pilot Diameter (mm) | 3.30 |
| Pilot Diameter (Decimal Inch) | 0.1300 |
| Shank Type | Straight |
| Overall Length (mm) | 71.00 |
| Overall Length (Decimal Inch) | 2.80 |
| Cutting Direction | Forward |
| Tip Included Angle | 180 |
| Material Application | Alloy Tool Steel; Aluminum; Aluminum Alloys; Brass; Carbon Steel; Cast Iron; Copper; Copper Alloys; Free Machining Stainless Steel; Hardened Steel; Magnesium; Nickel; Nickel Alloys; Plastics; Stainless Steel; Steel |
| Material Application2 | Structural Steel; Thermosetting Plastics; Titanium; Titanium Alloys |
