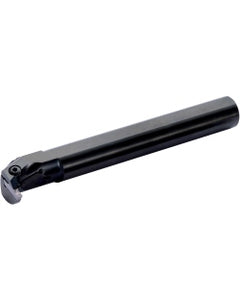

KGDIR 2520B3, Internal Grooving Toolholder
Item #: KY96THC14537
Brand: Kyocera Precision Tools
Model #: THC14537
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 3 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Width Maximum (CWX) | 3 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 18 mm |
| Application | | Int. Grooving | |
| Minimum Bore Diameter (DMIN) | 25 mm |
| Body Material | Steel |
| Functional Width (WF) | 14.5 mm |
| Series/List # | KGDI |
| Functional Length (LF) | 180 mm |
| Measurement Type | Metric |
| Head Length (LH) | 30 mm |
| Shank Length (LS) | 150 mm |
| Overall Length (OAL) | 180 mm |
