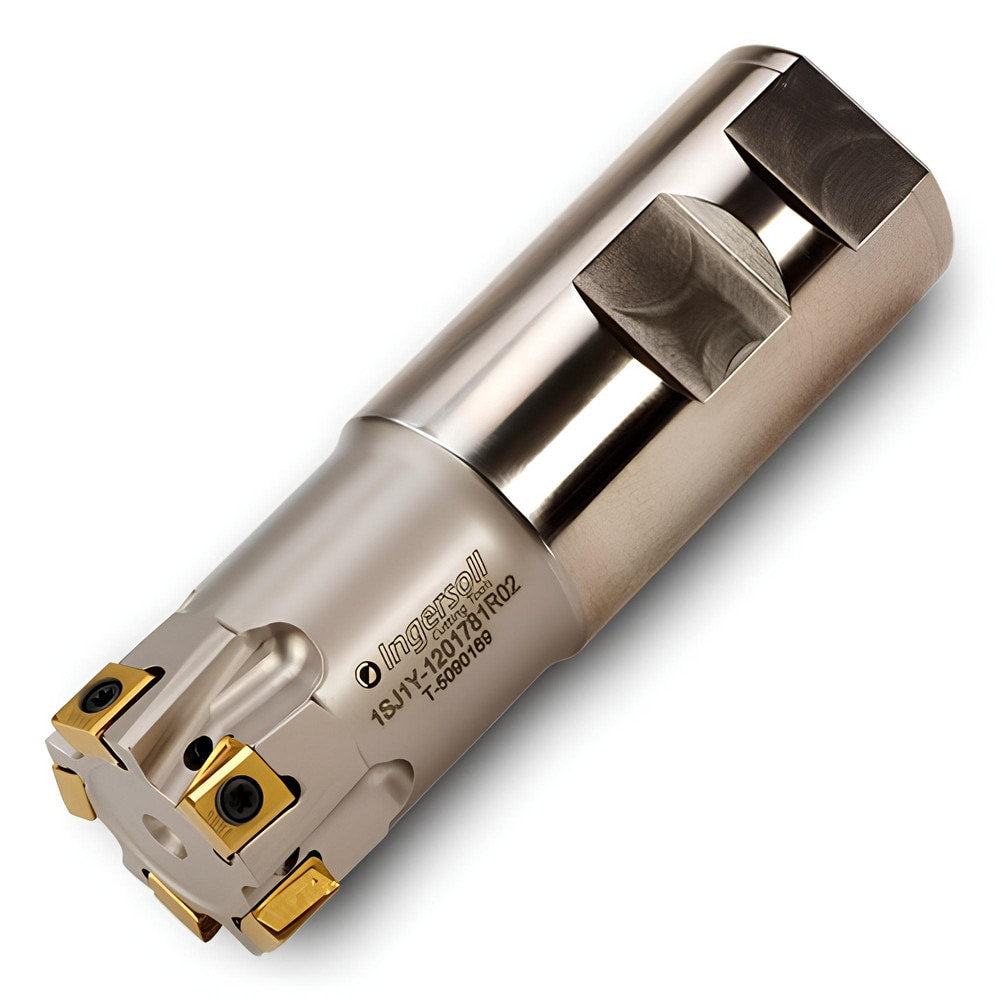

Brand: Ingersoll Cutting Tools / Part #: 3030102
Item #: 61600110
Brand: Ingersoll Cutting Tools
Model #: 3030102
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.7500 |
| Minimum Cutting Diameter (Inch) | 3/4 |
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (mm) | 7.87 |
| Maximum Depth of Cut (Decimal Inch) | 0.3100 |
| Cutter Style | 1SJ1Y |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 0 ? |
| Insert Holding Method | Screw |
| Overall Length (mm) | 114.3000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Tool Material | Steel |
| Series | 1SJ1Y |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 2.5500 |
| Shank Length (mm) | 64.770 |
| Head Length (Decimal Inch) | 1.9500 |
| Head Length (mm) | 49.53 |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative |
| Complete Insert Compatibility | ZGM212..; DGM212.. |
| Insert Compatibility | ZGM212..; DGM212.. |
| Hand of Holder | Right Hand |
| Multi-Use Tool | Yes |
| Manufacturers Catalog Number | 1SJ1Y-0702280R01 |
| Usable Length (mm) | 49.530 |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 1.9500 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
