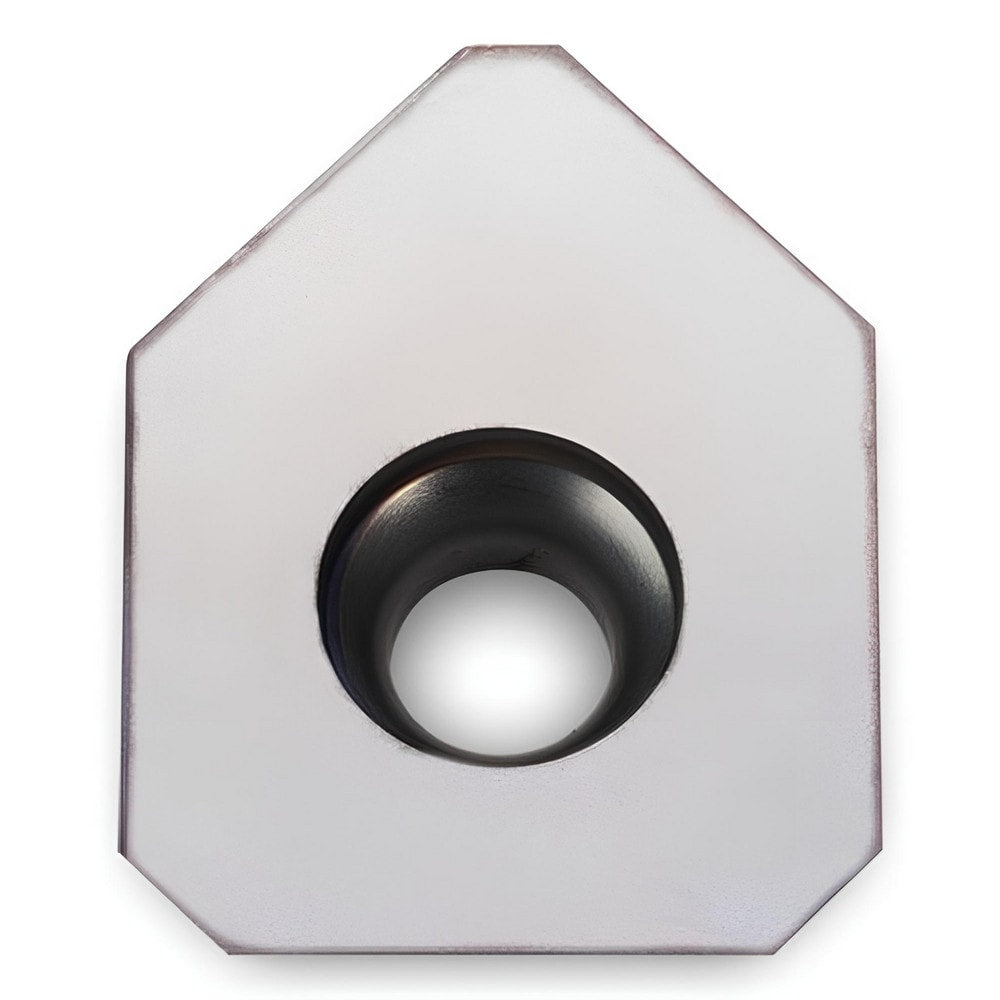

Brand: Ingersoll Cutting Tools / Part #: 5609298
Item #: 67291534
Brand: Ingersoll Cutting Tools
Model #: 5609298
Product Specifications
| Insert Style | SEKT |
| Insert Size Code | 12 |
| Insert Material | Carbide |
| Manufacturer Grade | TT8020 |
| Inscribed Circle (Decimal Inch) | 0.5200 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Series | SEKT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2700 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Square |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | SEKT12T3AFTR-WC |
| Rake Angle | 20.000 |
| Manufacturers Catalog Number | SEKT12T3AFTR-WC TT8020 |
| Cutter Series Compatibility | 5N2H; 15N1H |
| Chip Breaker | WC |
| Cutting Direction | Neutral |
| Shape | Square |
| Length of Cut (mm) | 6.8600 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5200 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.5200 |
