Brand: Ingersoll Cutting Tools / Part #: 5873183
Item #: 43413228
Brand: Ingersoll Cutting Tools
Model #: 5873183
Product Specifications
| Insert Style | RFMT |
| Insert Size Code | 1404 |
| Insert Material | Carbide |
| Manufacturer Grade | TT8020 |

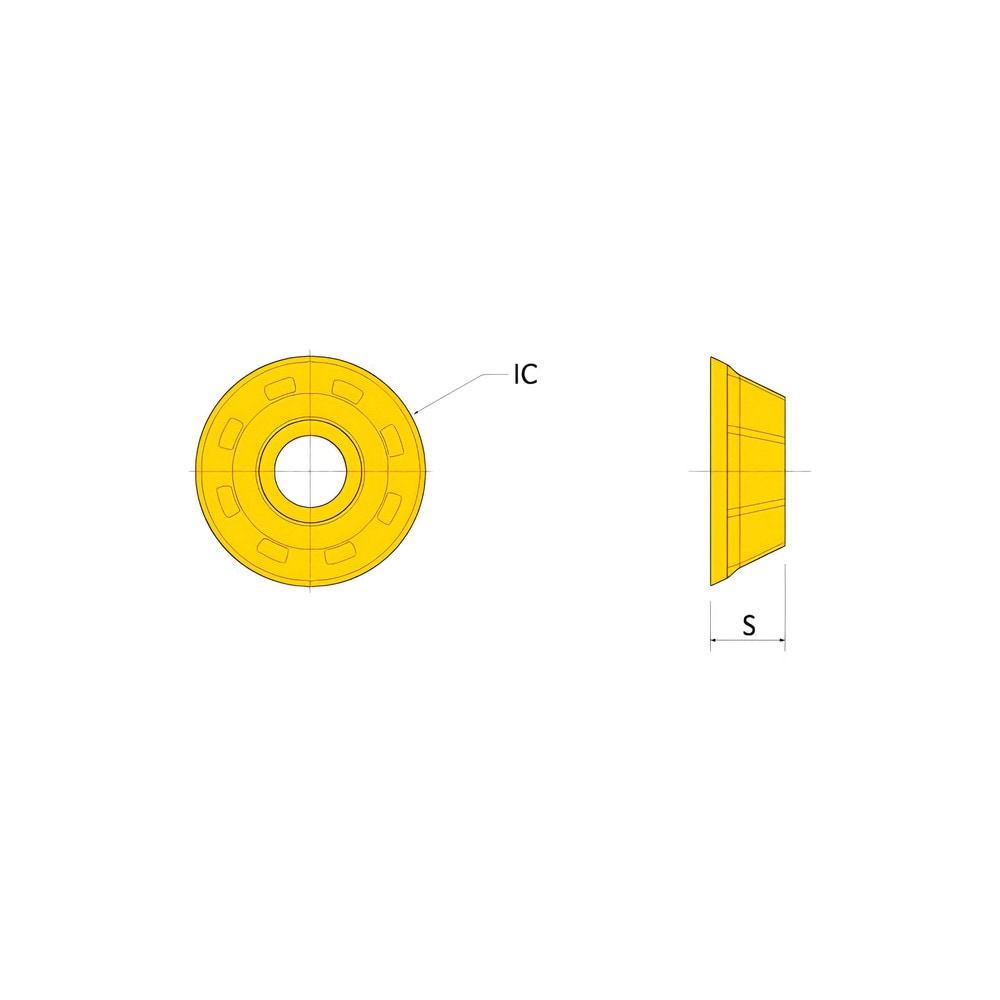

| Inscribed Circle (mm) | 14.00 |
| Corner Radius (Decimal Inch) | 0.2953 |
| Insert Hand | Neutral |
| Series | RFMT |
| Coating Process | PVD |
| Maximum Depth of Cut (mm) | 7.00 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | RFMT1404ML |
| Rake Angle | 25.000 |
| Manufacturers Catalog Number | RFMT1404ML TT8020 |
| Cutter Series Compatibility | 5N6H; 15N1H |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 7.0000 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN |
| Length | 14.00 |
| Width (Mm - 2 Decimals) | 14.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1783 |
| Multi-Use Tool | No |
