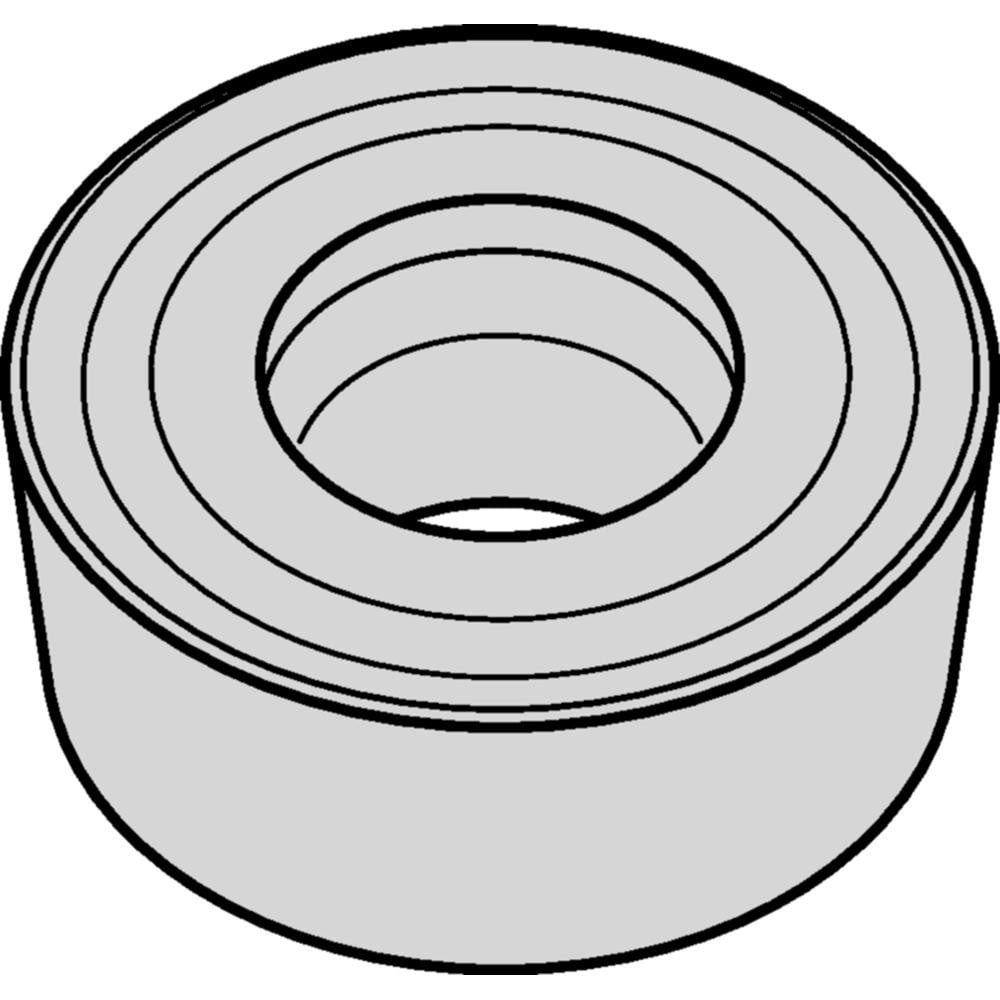

Brand: Widia / Part #: 2028145
Item #: 95223525
Brand: Widia
Model #: 2028145
Product Specifications
| Insert Style | RCMT |
| Insert Shape Code | R |
| Insert Size Code | 10T3 |
| Insert Shape | Round |
| Coating/Finish | Uncoated |
| Manufacturer Grade | TTR |
| Corner Radius (Decimal Inch) | 0.1969 |
| Insert Material | Carbide |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Clearance Code | C |
| Tolerance Code | M |
| Relief Angle | 7.000 |
| Series | RCMT |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.3937 |
| Number Of Cutting Edges | 1 |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | RCMT10T3M0 |
| Iso Code | RCMT10T3M0 |
| Manufacturers Catalog Number | RCMT10T3M0 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | RCMT |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | External Turning; Internal Turning |
