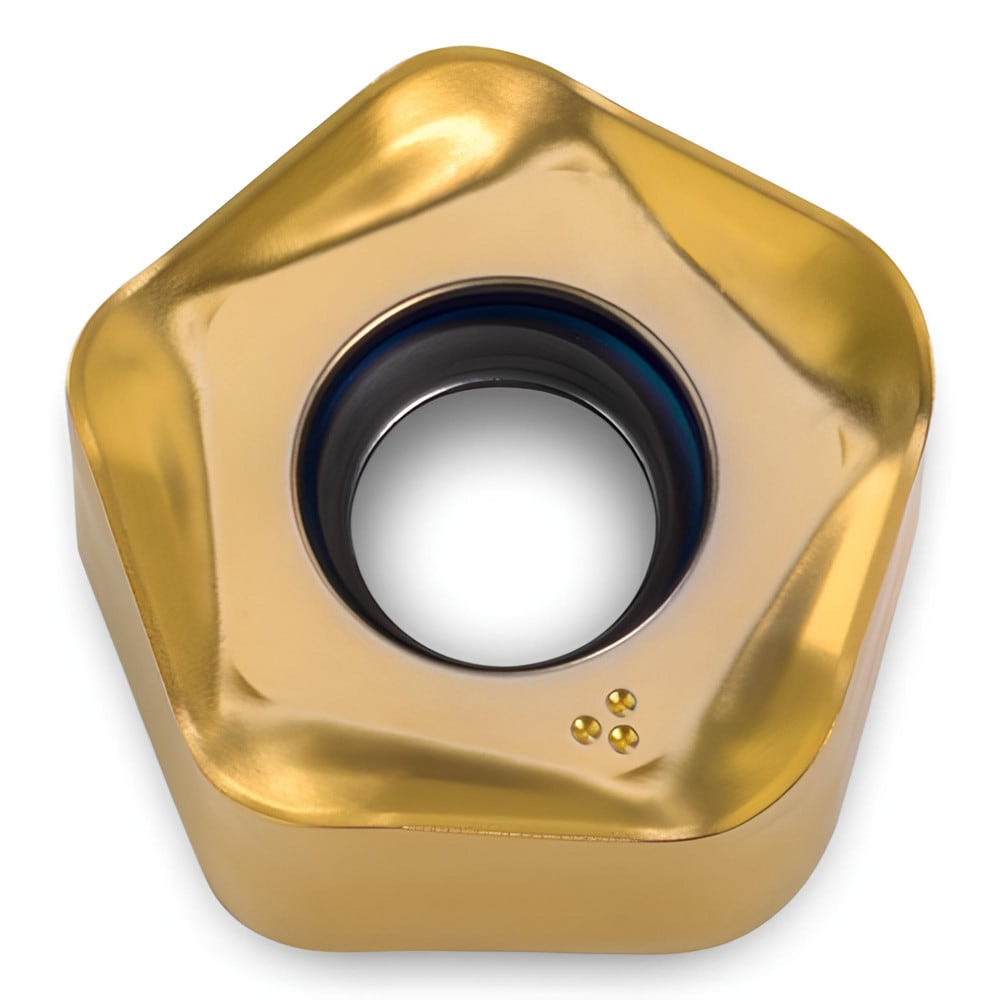

Brand: Ingersoll Cutting Tools / Part #: 6308003
Item #: 94728482
Brand: Ingersoll Cutting Tools
Model #: 6308003
Product Specifications
| Insert Style | PNCU |
| Insert Size Code | 100630 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2505 |
| Inscribed Circle (Decimal Inch) | 0.5590 |
| Corner Radius (mm) | 3.00 |
| Insert Hand | Right Hand |
| Series | PNCU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number Of Cutting Edges | 10 |
| Insert Shape | Pentagon |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | PNCU100630R-M |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | PNCU100630R-M IN2505 |
| Cutter Series Compatibility | DM6P; 1DP1P |
| Chip Breaker | M |
| Cutting Direction | Right Hand |
| Shape | Pentagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 108 |
| Thickness (Decimal Inch - 4 Decimals) | 0.3030 |
| Multi-Use Tool | Yes |
