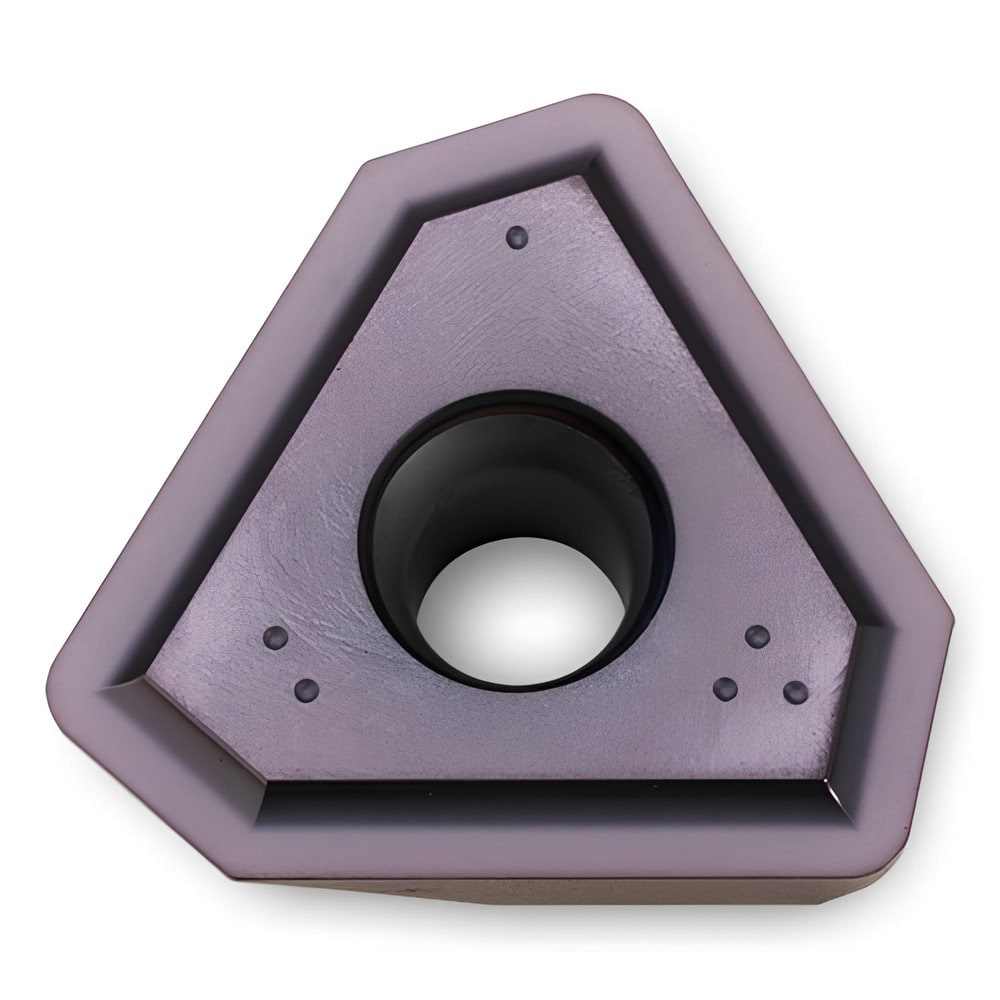

Brand: Ingersoll Cutting Tools / Part #: 4801902
Item #: 95110995
Brand: Ingersoll Cutting Tools
Model #: 4801902
Product Specifications
| Insert Style | TPMX |
| Insert Size Code | 280708 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2510 |
| Thickness (mm) | 7.4900 |
| Inscribed Circle (Decimal Inch) | 0.6690 |
| Inscribed Circle (mm) | 16.99 |
| Cutting Direction | Right Hand |
| Corner Radius (Inch) | 1/32 |
| Chipbreaker | B |
| Series | TPMX |
| Coating Process | PVD |
| Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Manufacturers Catalog Number | TPMX280708R-B IN2510 |
| Drill Style | TBTA |
| Insert Size | 28 |
| Coating Classification | PVD |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2950 |
| Coating/Finish | TiN; TiAlN |
