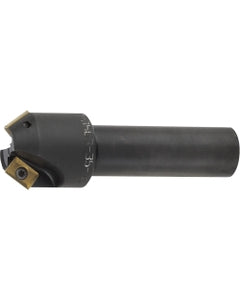

CM 05634509 45 Degree, Chamfer End Mill
Item #: KY96OTM86112
Brand: Kyocera Precision Tools
Model #: OTM86112
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.041″ |
| Usable Length (LU) | 0.24″ |
| Cutting Diameter (DC) | 1.041″ |
| Flute Count (NOF) | 2 |
| Cutting Diameter Maximum (DCX) | 1.041″ |
| Coolant Supply Property (CSP) | External |
| Cutting Item Count (CICT) | 2 |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 0.24″ |
| Style | CM |
| Overall Length (OAL) | 2.9098″ |
| Cutting Direction (HAND) | Right Hand |
| Application | Chamfering | Countersinking | Facing |
| Angle | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Series/List # | CM |
| Master Insert Identification (MIID) | XPMT090208 |
| Measurement Type | Inch |
| Weight of Item (WT) | 0.77 |
| Model Number | 8600718 |
| Head Length (LH) | 1″ |
| Body Material | Steel |
| Functional Length (LF) | 2.9098″ |
| Shank Length (LS) | 1.9098″ |
