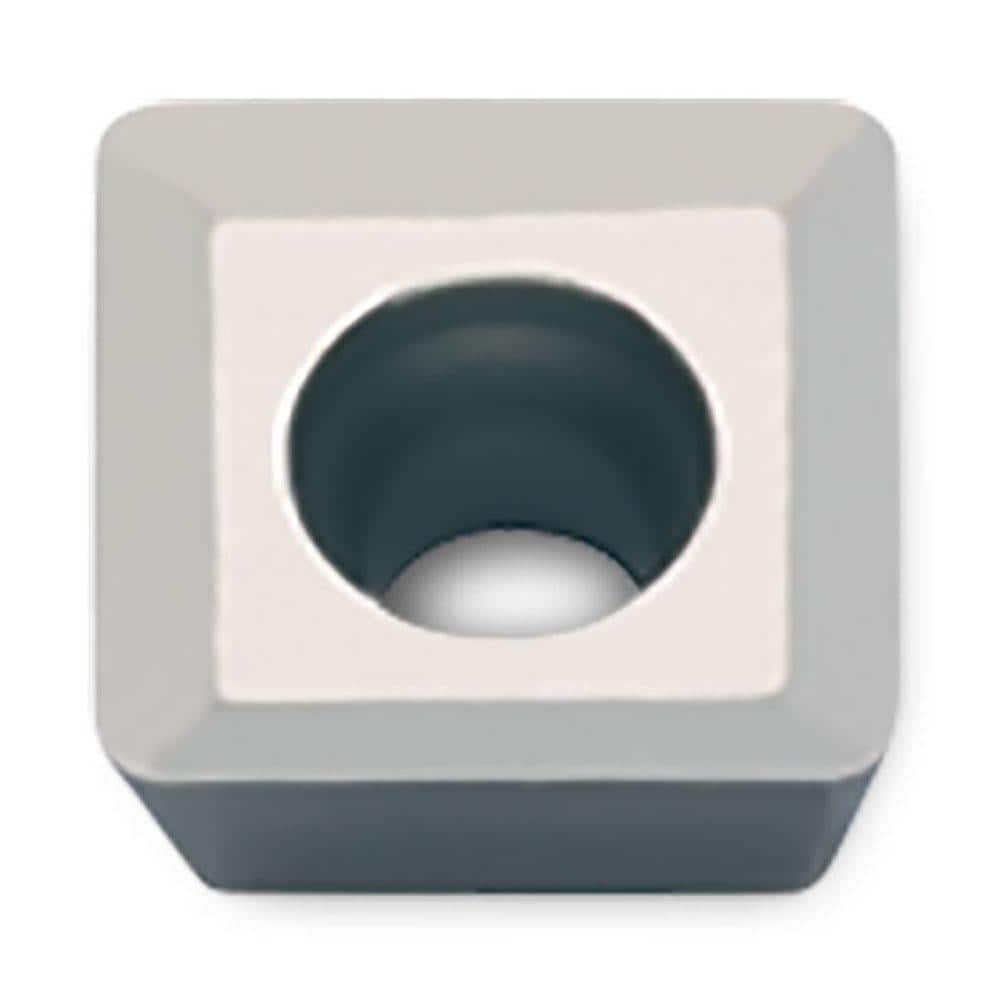

Brand: Ingersoll Cutting Tools / Part #: 5101040
Item #: 77346559
Brand: Ingersoll Cutting Tools
Model #: 5101040
Product Specifications
| Insert Style | SDGT |
| Insert Size Code | 07 |
| Insert Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer Grade | IN10K |
| Inscribed Circle (Decimal Inch) | 0.3130 |
| Cutting Direction | Neutral |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chipbreaker | HP |
| Series | SDGT-HP |
| Coating Process | Uncoated |
| Shape | Square |
| Number Of Cutting Edges | 4 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | SDGT07T308-HP |
| Iso Code | SDGT07T308-HP |
| Drill Style | Q |
| Insert Size | 07T308 |
| Coating Classification | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.3130 |
| Length (Decimal Inch - 4 Decimals) | 0.3130 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1560 |
| Coating/Finish | Uncoated |
