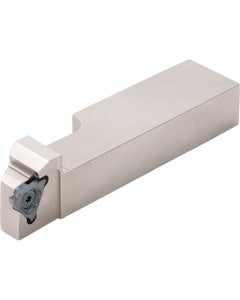

KGBFR 1220H16FJCT, Coolant-Through External Grooving Toolholder
Item #: KY96THC14777
Brand: Kyocera Precision Tools
Model #: THC14777
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.25 mm |
| Overall Length (OAL) | 100 mm |
| Cutting Width Maximum (CWX) | 3 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 3 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 12 mm |
| Application | | Shallow Grooving | Small Parts Machining | |
| Shank Width (B) | 20 mm |
| Body Material | Steel |
| Functional Width (WF) | 12 mm |
| Series/List # | GBFJ |
| Functional Length (LF) | 100 mm |
| Measurement Type | Metric |
| Head Length (LH) | 20 mm |
| Shank Length (LS) | 80 mm |
