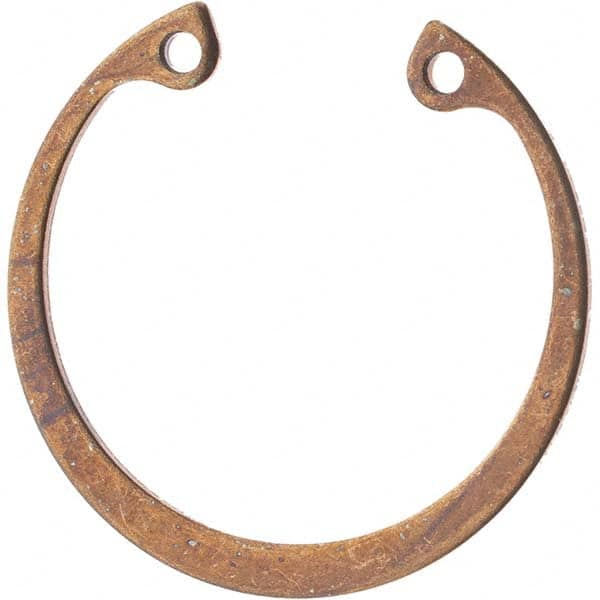

Rotor Clip - 1-9/16" Bore Diam, Beryllium Copper Internal Snap Retaining Ring
Item #: 99616336
Brand: Rotor Clip
Model #: HO-156BC
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Beryllium Copper |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-9/16 |
| Groove Diameter (Decimal Inch) | 1.6580 |
| Groove Width (Decimal Inch) | 0.0680 |
| Free Outside Diameter (Decimal Inch) | 1.5625 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Material Grade | UNS C17200 |
| Finish/Coating | Plain |
| Groove Depth (Decimal Inch) | 0.0480 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
