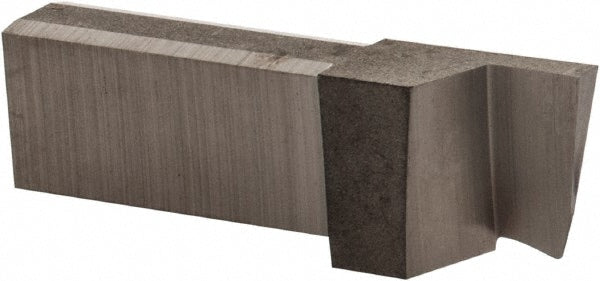

Multi-Directional Turning Insert: LGT050D5R, Dura-Max 5000, Solid Carbide
Item #: 00281949
Brand: Thin Bit
Model #: LGT050D5R
Product Specifications
| Insert Style | LGT |
| Insert Size Code | 050 |
| Cutting Width (Decimal Inch) | 0.0500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | Dura-Max 5000 |
| Full Radius | No |
| Rake | Neutral |
| Insert Size | 050 |
| Material Grade | C3; C2 |
| Maximum Depth Of Cut Range (Decimal Inch) | 0.1000 to 0.1500 |
| Cutting Height (Decimal Inch) | 0.2400 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Rake Angle | 0.00 |
| Overall Length (Decimal Inch) | 0.8250 |
| Primary Workpiece Material | Universal |
| Standards | ANSI |
| UNSPSC Code | 23242105 |
| Overall Width (Decimal Inch - 4 Decimals) | 0.1450 |
| Coating/Finish | Bright/Uncoated |
