Brand: Widia / Part #: 2022342
Item #: 99728016
Brand: Widia
Model #: 2022342
Product Specifications

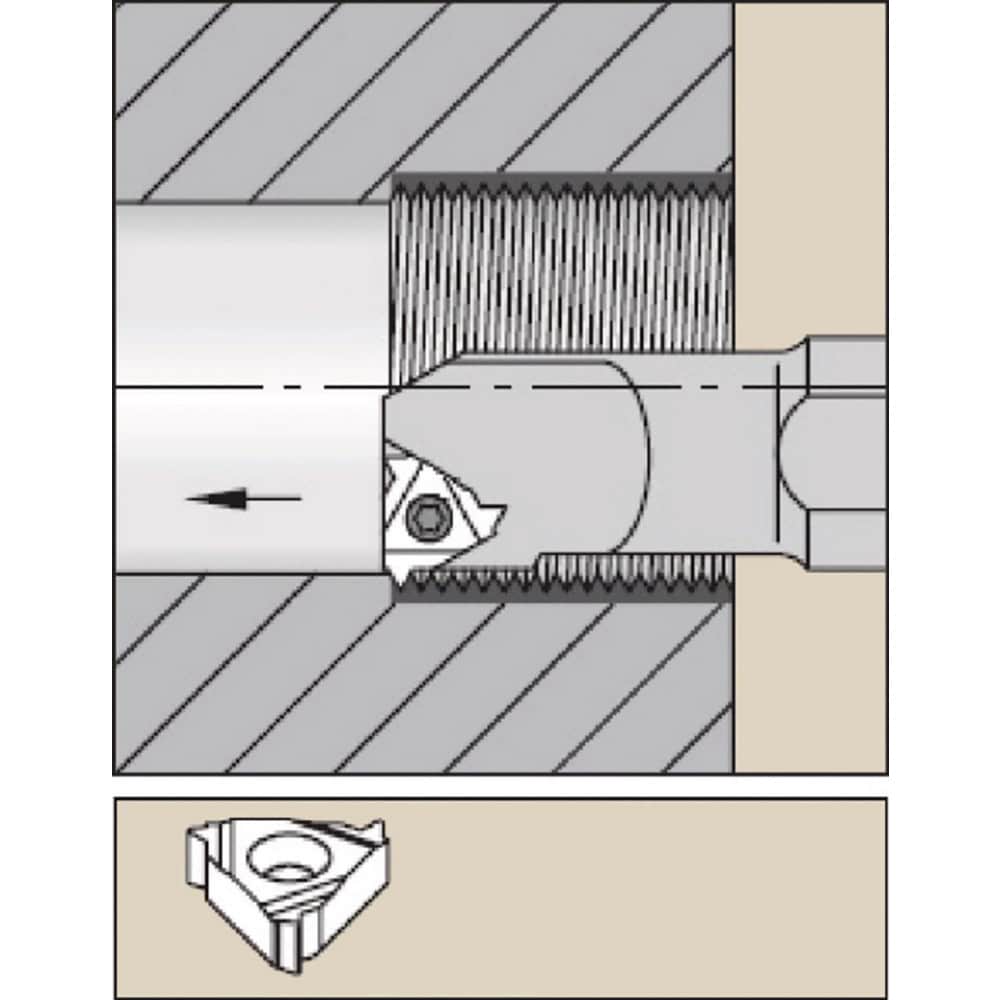

| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 2 |
| Shank Width/Diameter (mm) | 20.00 |
| Toolholder Style | NVR |
| Insert Compatibility | LT11NR |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 18.00 |
| Shank Length (mm) | 148.000 |
| Overall Length (mm) | 180.0000 |
| Minimum Bore Diameter (mm) | 16.00 |
| Series | N/A-VR |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Chamfering; Threading |
| Head Length (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 0.90 |
| Adjustable Overhang | Yes |
| Maximum Overhang (Inch) | 1.2598 |
| Back of Bar to Cutting Edge (mm) | 18.90 |
| Center to Cutting Edge (mm) | 8.90 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (mm) | 6.35 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1248 |
| Style | NVR |
| Coolant Through | No |
