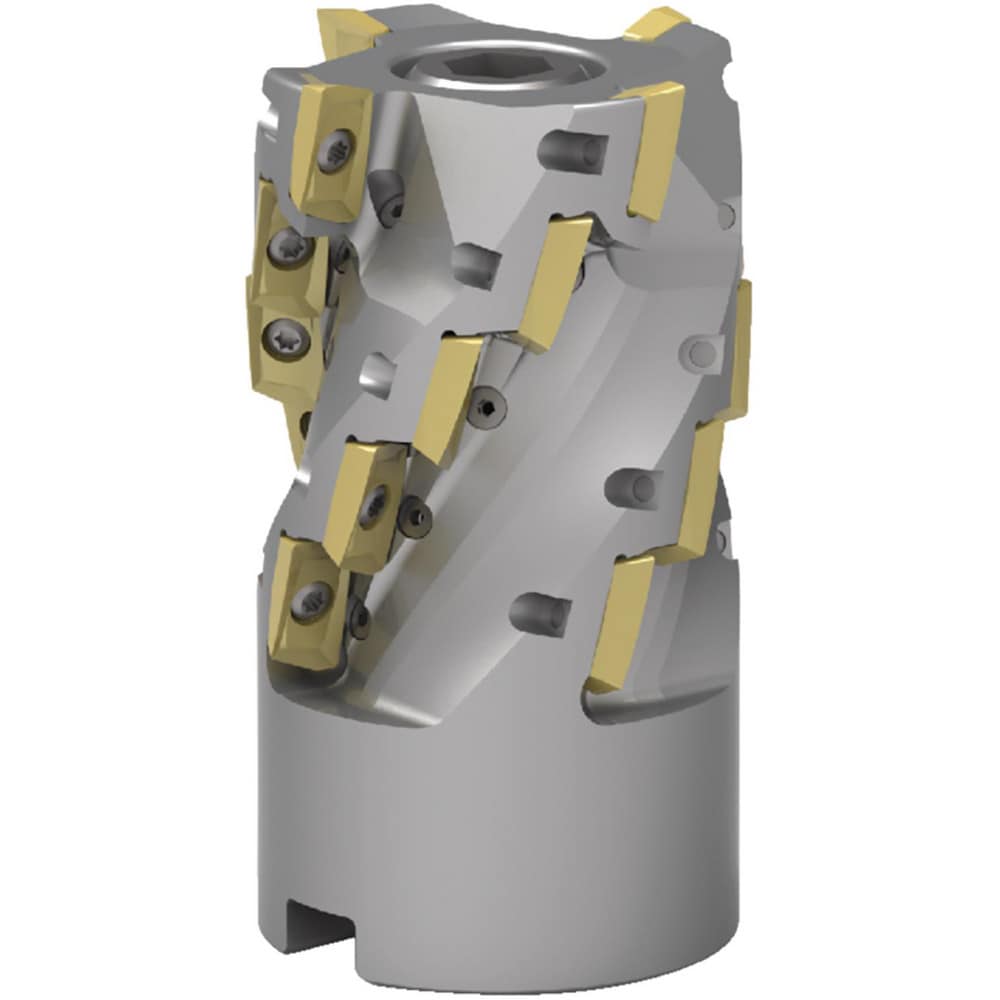

Brand: Widia / Part #: 6425401
Item #: 09952615
Brand: Widia
Model #: 6425401
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 2.3800 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | XD_T170408PE_R___ |
| Maximum Ramping Angle | 3 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | VSM17H |
| Maximum Body Diameter (Decimal Inch) | 1.9100 |
| Overall Height (Decimal Inch) | 3.5000 |
| Keyway Width (mm) | 9.78 |
| Hub Diameter (Decimal Inch) | 1.9100 |
| Maximum RPM | 25600.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VHM17D200Z04S350XD17 |
| Complete Insert Compatibility | XD_T170408PE_R___ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VHM17D200Z04S350XD17 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 16 |
| Number Of Flutes | 4 |
