Brand: Ingersoll Cutting Tools / Part #: 6126858

Brand: Ingersoll Cutting Tools / Part #: 6126858


Item #: 67302422
Brand: Ingersoll Cutting Tools
Model #: 6126858

Product Specifications

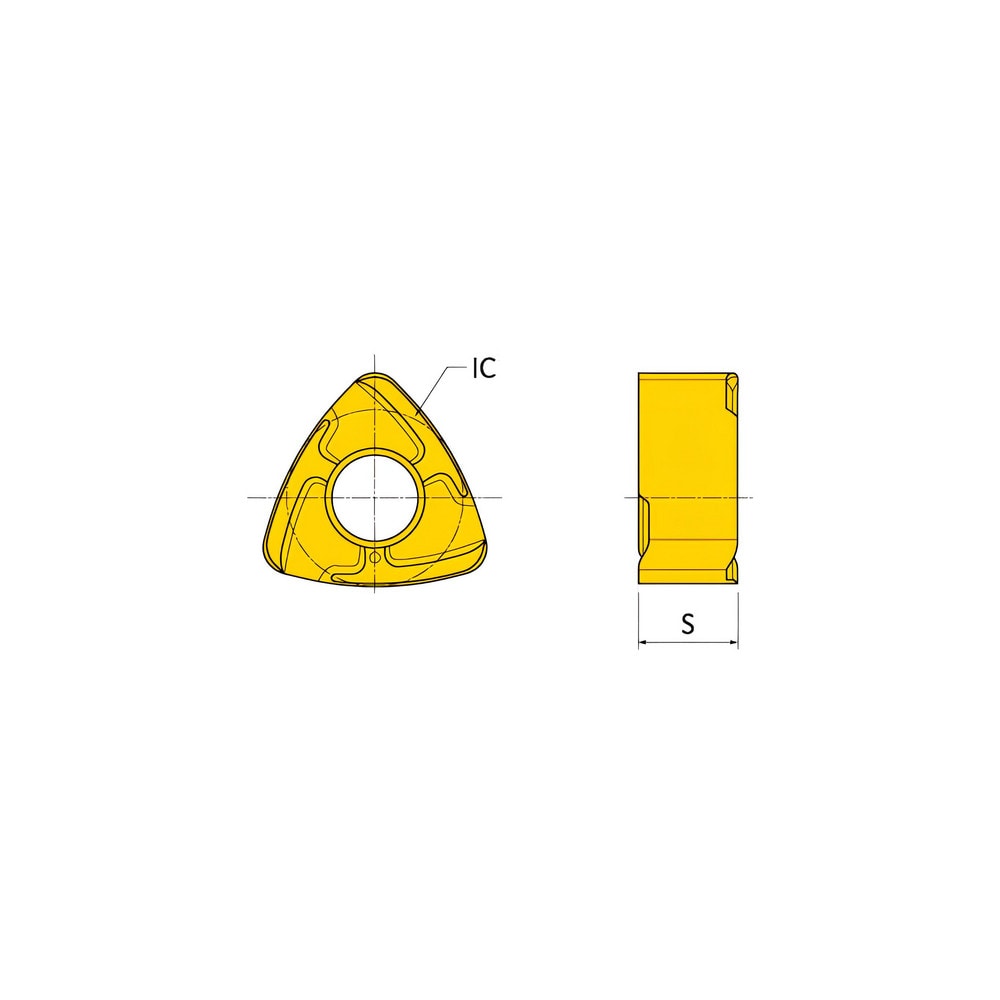

Insert Style UNEU
Insert Size Code 1307
Insert Material Carbide
Manufacturer Grade IN2504
Inscribed Circle (mm) 13.00
Corner Radius (Decimal Inch) 0.0710
Insert Hand Right Hand
Series UNEU
Coating Process PVD
Maximum Depth of Cut (Decimal Inch) 0.0780
Number Of Cutting Edges 6
Insert Shape Triangle
Rake Negative
Primary Workpiece Material Hard Material; Cast Iron; Steel
Primary Workpiece Material Code P; H; K
Ansi Code UNEU1307R-M
Rake Angle 0.000
Manufacturers Catalog Number UNEU1307R-M IN2504
Cutter Series Compatibility DG5P; DG6P; 4W2A; DG1P
Chip Breaker M
Cutting Direction Right Hand
Shape Triangle
Insert Holding Method Screw
Thickness (mm) 7.0000
Coating Classification PVD
Single or Double Sided Insert Double
Coating/Finish TiN; TiAlN
Included Angle Degree 60
Multi-Use Tool Yes
$27.97
