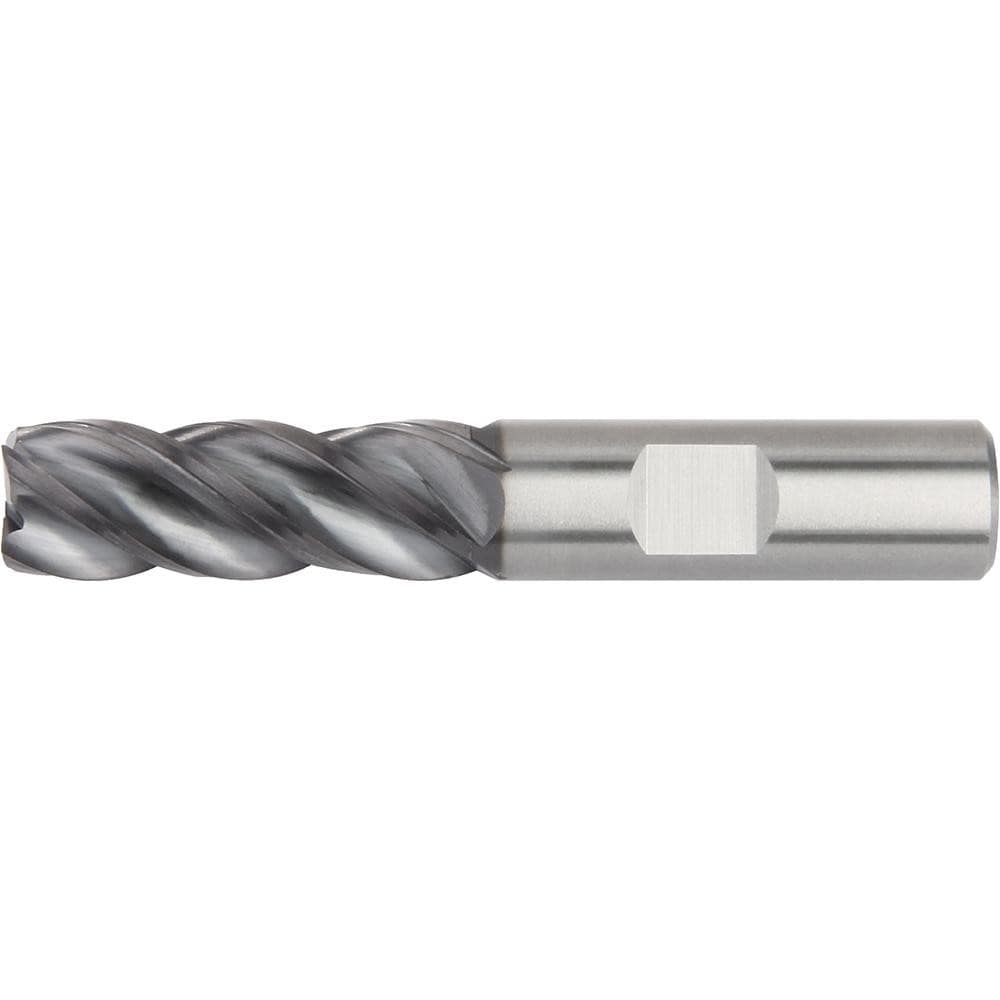

Brand: Widia / Part #: 5576631

Brand: Widia / Part #: 5576631


Item #: 34037556
Brand: Widia
Model #: 5576631

Product Specifications

Mill Diameter (Inch) 3/4
Mill Diameter (Decimal Inch) 0.7500
Number Of Flutes 4
Length of Cut (Inch) 1-5/8
End Mill Material Solid Carbide
End Type Single
Centercutting Yes
Cutting Direction Right Hand
Shank Diameter (Inch) 3/4
Finish/Coating AlTiN
Overall Length (Inch) 4
Helix Angle 38
Chipbreaker No
Variable Helix No
Variable Index Yes
Extended Reach No
Shank Type Weldon Flat
Length of Cut (Decimal Inch) 1.6250
Material Grade WP15PE
Shank Diameter (Decimal Inch) 0.7500
Overall Length (Decimal Inch) 4.0000
Flute Direction Right Hand
Flute Type Variable Index
Helix Style Medium
Length Type Extended
Reach Length (Decimal Inch) 1.6250
Reach Length (mm) 41.28
Through Coolant No
Series 4V65
$267.68
