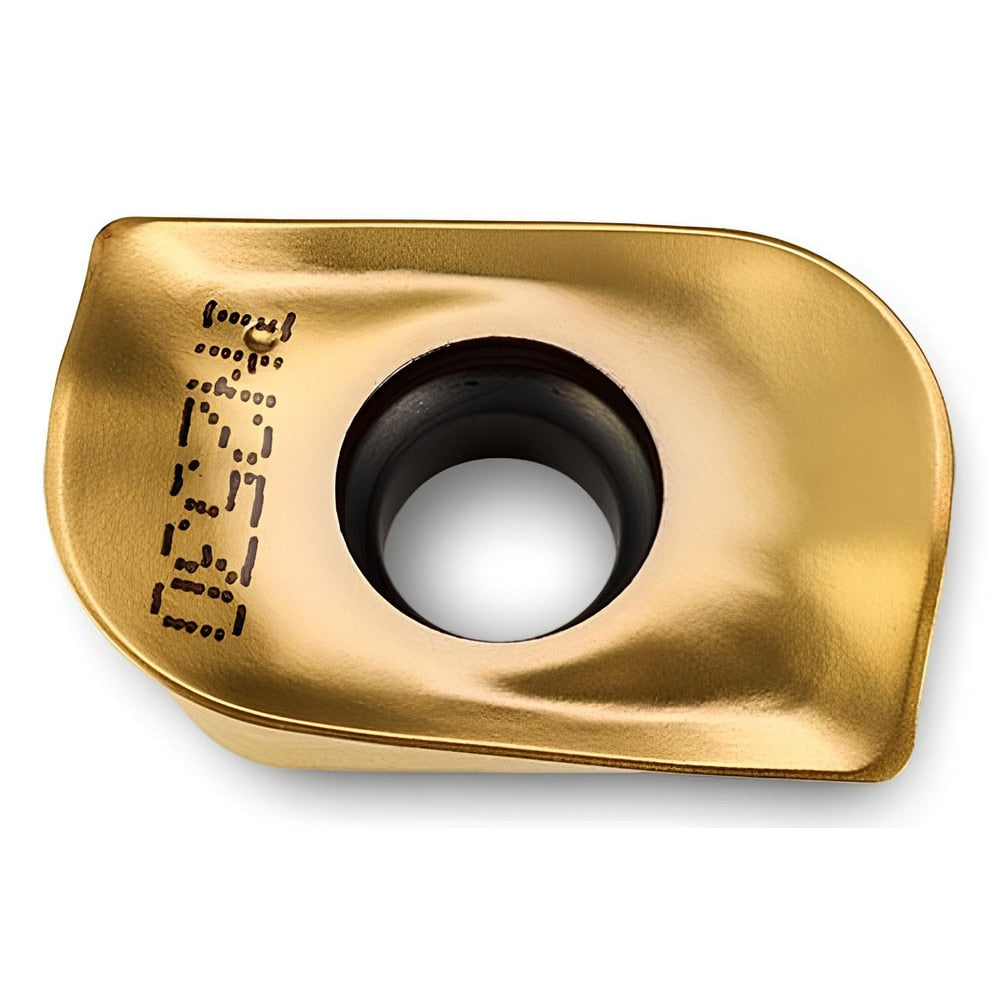

Brand: Ingersoll Cutting Tools / Part #: 6126938
Item #: 67291492
Brand: Ingersoll Cutting Tools
Model #: 6126938
Product Specifications
| Insert Style | APKT |
| Insert Size Code | 170550 |
| Insert Material | Carbide |
| Manufacturer Grade | TT2510 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Inch) | 27/64 |
| Corner Radius (mm) | 5.00 |
| Insert Hand | Right Hand |
| Series | APKT |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5960 |
| Number Of Cutting Edges | 2 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | APKT170550R-EM |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | APKT170550R-EM TT2510 |
| Cutter Series Compatibility | 22J5G; 12J1G; 22J3G; 2L1G; 2J1G; 12L1G |
| Chip Breaker | EM |
| Cutting Direction | Right Hand |
| Shape | Parallelogram |
| Length of Cut (mm) | 15.1400 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | AlTiN |
| Included Angle Degree | 85 |
| Width (Decimal Inch - 4 Decimals) | 0.4210 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6640 |
