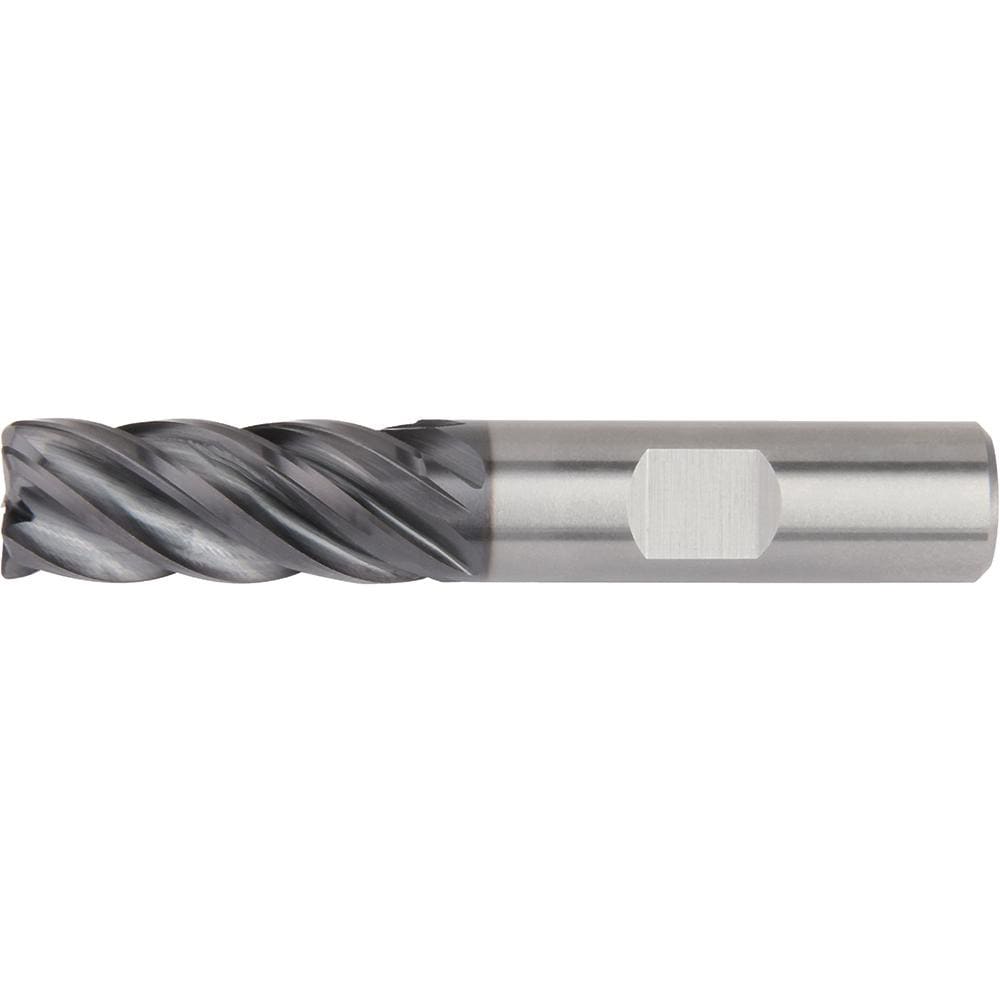

Brand: Widia / Part #: 5577160

Brand: Widia / Part #: 5577160


Item #: 33972985
Brand: Widia
Model #: 5577160

Product Specifications

Mill Diameter (Inch) 3/4
Coating/Finish AlTiN
End Mill Material Solid Carbide
Number Of Flutes 5
Overall Length (Inch) 4
Length of Cut (Inch) 1-1/2
Cutting Direction Right Hand
Mill Diameter (Decimal Inch) 0.7500
Flute Direction Right Hand
Overall Length (Decimal Inch) 4.0000
Chipbreaker No
Length Of Cut (Decimal Inch - 4 Decimals) 1.5000
Length Type Regular
Flute Type Helical
Extended Reach No
Shank Type Straight-Cylindrical
Centercutting Yes
Material Removal Type Finishing
Minimum Helix Angle 38.00
Maximum Helix Angle 38.00
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Steel
Primary Workpiece Material Code P; H; K; M
Secondary Workpiece Material High Temperature Alloy
Secondary Workpiece Material Code S
Material Grade WP15PE
Series 5V0C
$268.13
