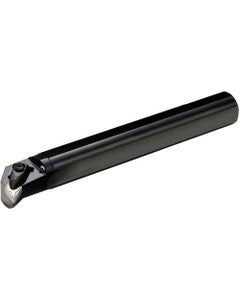

A40TDDUNR1550 Right-Hand, Negative Rake, Coolant-Through Boring Bar
Item #: KY96THC16110
Brand: Kyocera Precision Tools
Model #: THC16110
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 300 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 300 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 55 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 37 mm |
| Series/List # | DBCB |
| Shank Length (LS) | 245 mm |
| Body Material | Steel |
| Functional Width (WF) | 27 mm |
| Style | A...DDUN |
| Master Insert Identification (MIID) | | DNMG43 | DNMX43 | DNGG43 | DNGA43 | DNMM43 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 50 mm |
| Weight of Item (WT) | 6.0076 |
