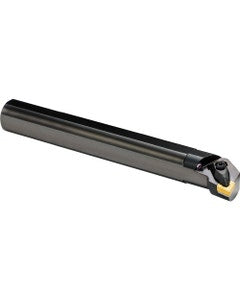

A25RDCLNL1232 Left-Hand, Negative Rake, Coolant-Through Boring Bar
Item #: KY96THC16015
Brand: Kyocera Precision Tools
Model #: THC16015
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 200 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 200 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 42 mm |
| Rake Angle Radial (GAMF) | -11 Degrees |
| Shank Height (H) | 23 mm |
| Series/List # | DBCB |
| Shank Length (LS) | 158 mm |
| Body Material | Steel |
| Functional Width (WF) | 17 mm |
| Style | A...DCLN |
| Master Insert Identification (MIID) | | CNMG43 | CNMM43 | CNGG43 | CNMA43 | CNGA43 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm |
| Weight of Item (WT) | 1.6361 |
