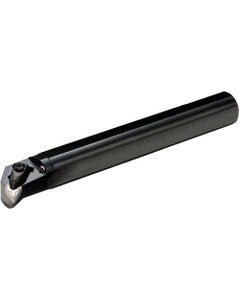

A50UDDUNR1563 Right-Hand, Negative Rake, Coolant-Through Boring Bar
Item #: KY96THC16120
Brand: Kyocera Precision Tools
Model #: THC16120
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 50 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 350 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 350 mm |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Head Length (LH) | 65 mm |
| Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 47 mm |
| Series/List # | DBCB |
| Shank Length (LS) | 285 mm |
| Body Material | Steel |
| Functional Width (WF) | 35 mm |
| Style | A...DDUN |
| Master Insert Identification (MIID) | | DNMG43 | DNMX43 | DNGG43 | DNGA43 | DNMM43 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 63 mm |
| Weight of Item (WT) | 11.0672 |
