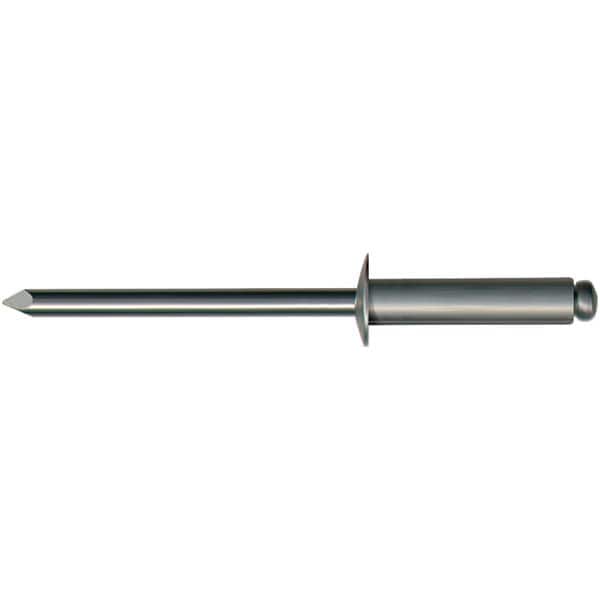

Marson - Blind Rivets Type: Open End Head Type: Large Flange
Item #: 10330769
Brand: Marson
Model #: M50248
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Large-flange head types have the largest bearing surface of blind rivets. They are used in oversized holes and to fasten soft or brittle materials to prevent pull-through.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Product Specifications
Blind Rivets; Type: Open End ; Head Type: Large Flange ; Size Code: 64 ; Rivet Material: Aluminum ; Mandrel Material: Aluminum ; Minimum Grip (Decimal Inch): 0.1260
| Type | Open End |
| Head Type | Large Flange |
| Size Code | 64 |
| Rivet Material | Aluminum |
| Mandrel Material | Aluminum |
| Minimum Grip (Decimal Inch) | 0.1260 |
| Maximum Grip (Decimal Inch) | 0.2500 |
| Head Diameter (Decimal Inch) | 0.6150 |
| Minimum Hole Diameter (Decimal Inch) | 0.1920 |
| Maximum Hole Diameter (Decimal Inch) | 0.1960 |
| Rivet Material Grade | 5052 |
| Mandrel Material Grade | 5056 |
| Drill Size (Wire) | #11 |
| Body Diameter (Inch) | 0.1875 |
| Shear Strength (Lb.) | 330 |
| Tensile Strength (Lb.) | 515 |
| Head Height (Decimal Inch) | 0.0600 |
