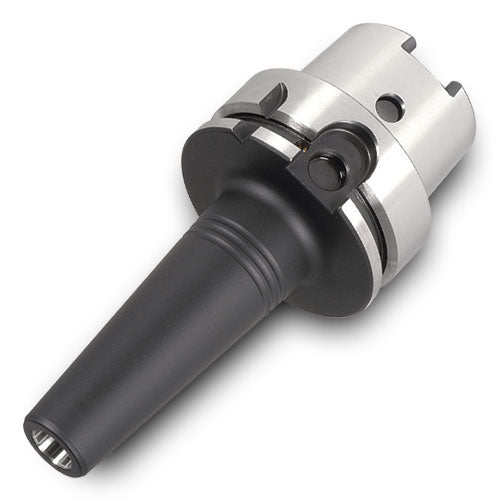

HSKA63SRK5/16X3.250
Item #: IC104543226
Brand: Ingersoll
Model #: 4543226
| Product Specifications | |
|---|---|
| Connection Diameter Workpiece Side (DCONWS) | 0.313″ |
| Clamping Length Workpiece Side (LSCWS) | 1.42″ |
| Shank Size (SS) | HSK-A 63 |
| Nose Diameter | 0.55″ |
| Body Length (LB) | 3.098″ |
| Usable Length (LU) | 4.274″ |
| Body Diameter (BD) | 0.906″ |
| Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.55″ |
| Body Material | Steel |
| Thread Designation Inside (THID) | M6 |
