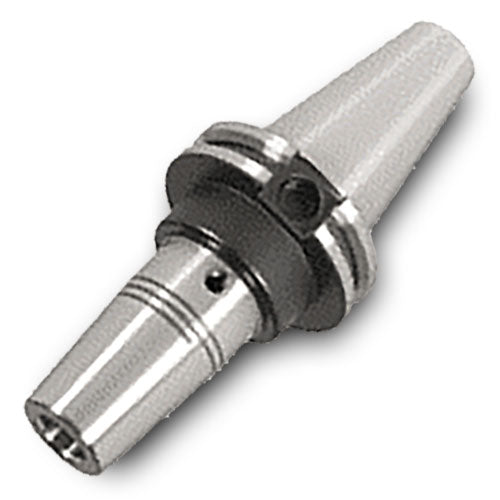

CAT50SRKIN5/8X3.750
Item #: IC104542854
Brand: Ingersoll
Model #: 4542854
| Product Specifications | |
|---|---|
| Connection Diameter Workpiece Side (DCONWS) | 5/8″ |
| Thread Designation Inside (THID) | M12 |
| Shank Size (SS) | CAT50 |
| Clamping Length Workpiece Side (LSCWS) | 1.97″ |
| Body Length (LB) | 1.751″ |
| Nose Diameter | 1.063″ |
| Body Length_2 (LB_2) | 2.62″ |
| Usable Length (LU) | 3-3/4″ |
| Body Diameter (BD) | 1.339″ |
| Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 1.063″ |
| Body Material | Steel |
| Body Length Maximum (LBX) | 3″ |
