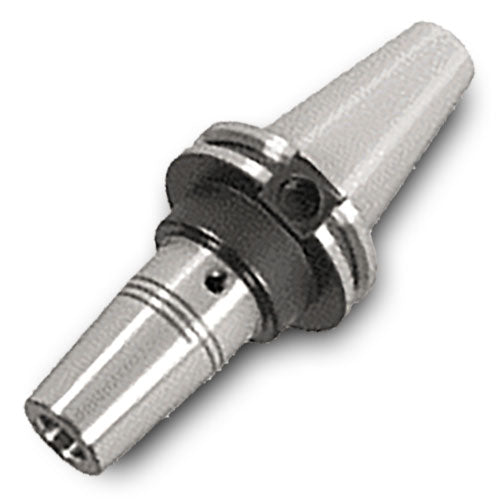

CAT40SRKIN3/8X3.750
Item #: IC104506249
Brand: Ingersoll
Model #: 4506249
| Product Specifications | |
|---|---|
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ |
| Thread Designation Inside (THID) | M8 |
| Shank Size (SS) | CAT40 |
| Clamping Length Workpiece Side (LSCWS) | 1.65″ |
| Body Length (LB) | 2″ |
| Nose Diameter | 0.945″ |
| Body Length_2 (LB_2) | 2.37″ |
| Usable Length (LU) | 3-3/4″ |
| Body Diameter (BD) | 1.26″ |
| Measurement Type | Inch |
| Body Taper End Diameter (BTED) | 0.945″ |
| Body Material | Steel |
| Body Length Maximum (LBX) | 3″ |
