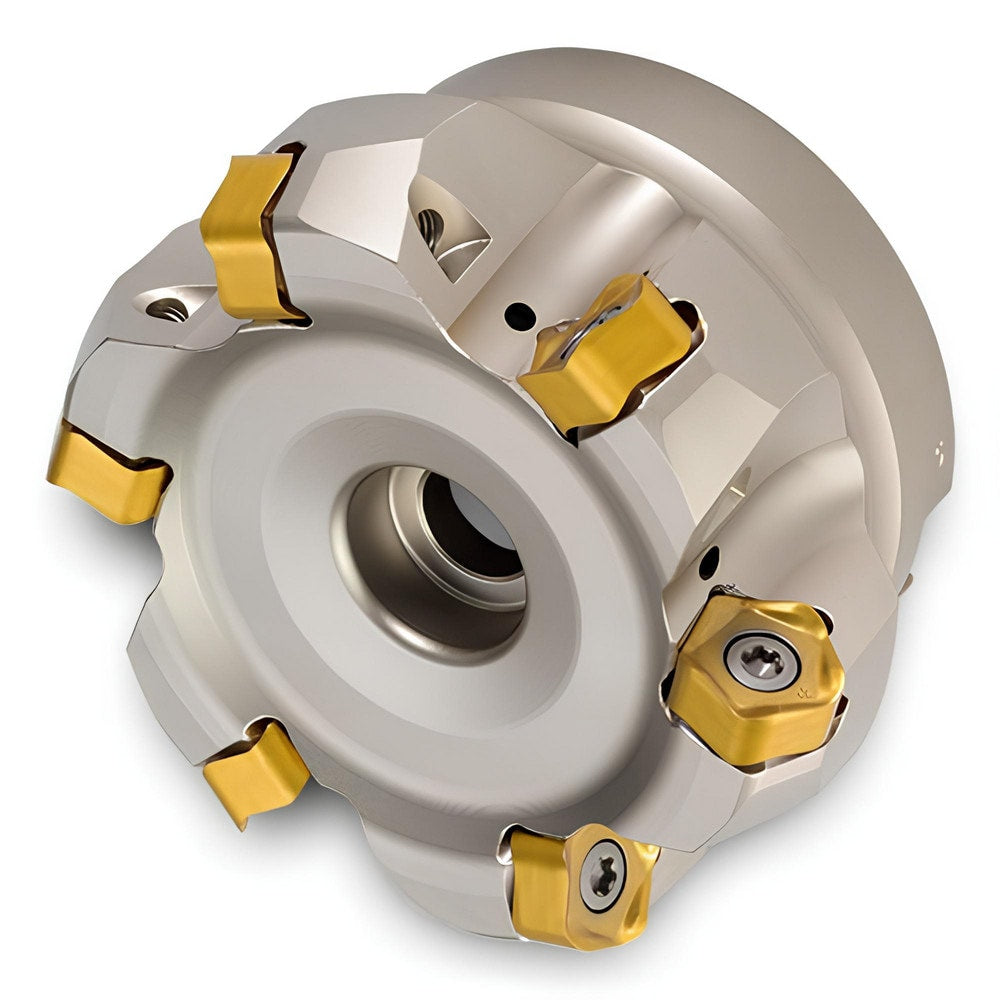

Brand: Ingersoll Cutting Tools / Part #: 2926042
Item #: 96711528
Brand: Ingersoll Cutting Tools
Model #: 2926042
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (mm) | 57.91 |
| Maximum Cutting Diameter (Decimal Inch) | 2.2800 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 65.000 |
| Compatible Insert Size Code | 1006 |
| Cutter Style | DM6P |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Positive |
| Series | DM6P |
| Keyway Width (Decimal Inch) | 0.3750 |
| Keyway Width (Inch) | 3/8 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Pitch Type | Normal |
| Tool Application | Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | PNCU1006 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | DM6P-20R01 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| Number Of Flutes | 4 |
