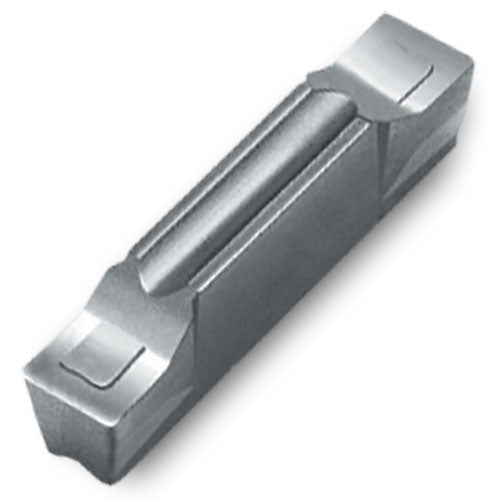

TDT6E-0.8TCE AB30
Item #: IC045701631
Brand: Ingersoll
Model #: 5701631
| Product Specifications | |
|---|---|
| Cutting Width (CW) | 0.236″ |
| Grade | AB30 |
| Corner Radius (RE) | 0.031″ |
| Application | | Ext. Grooving | Ext. Grooving & Turning | |
| Cutting Depth Maximum (CDX) | 0.945″ |
| Insert Seat Size Code (SSC) | 6 |
| Clearance Angle Major (AN) | 7 Degrees |
| Measurement Type | Inch |
| Insert Thickness (S) | 0.205″ |
| Body Material | Carbide |
| Insert Length (INSL) | 0.98″ |
