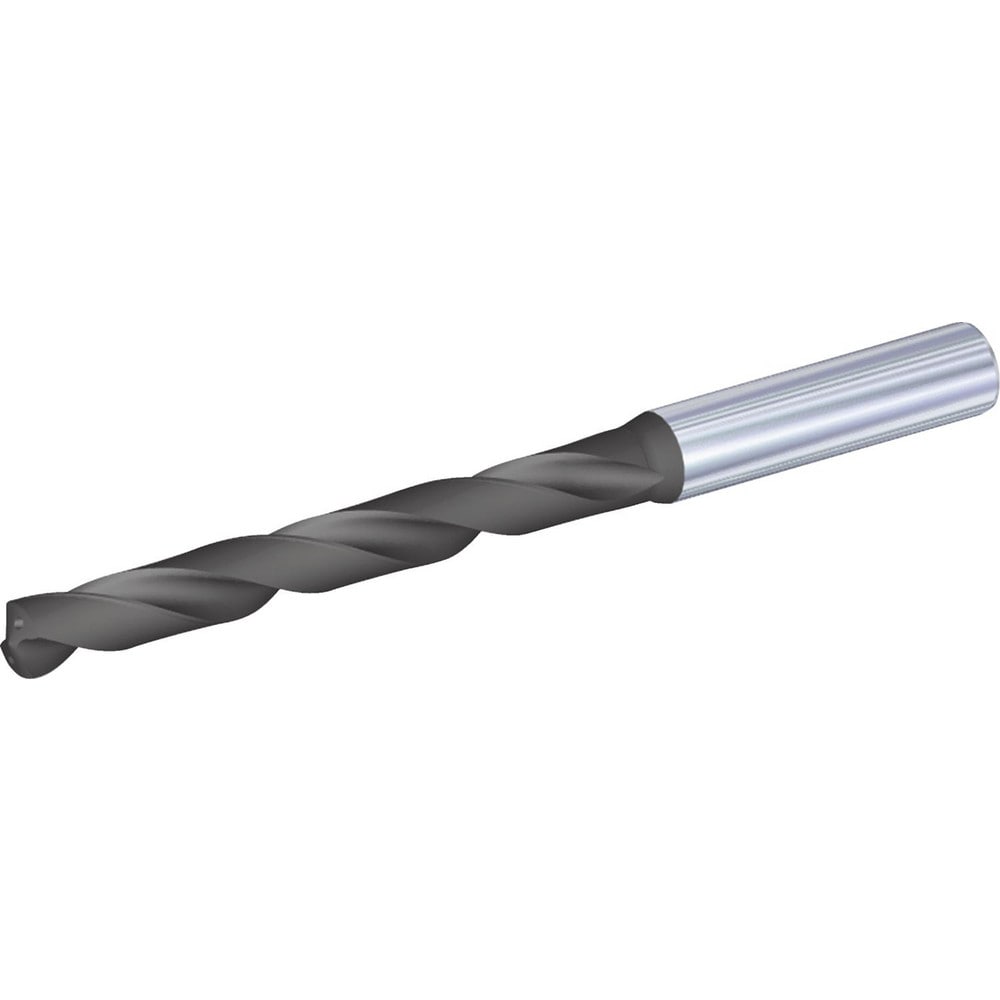

Brand: Widia / Part #: 4162729
Item #: 03293966
Brand: Widia
Model #: 4162729
Product Specifications
| Drill Bit Size (Inch) | 31/64 |
| Tool Material | Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Shank Type | Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | TDS403A |
| Point Type | Double Margin |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | 0.000300 to 0.001000 in |
| Number Of Flutes | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Drill Bit Grade | WP20PD |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Drill Point Length (Decimal Inch) | 0.0832 |
| Overall Length (Decimal Inch) | 6.1024 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Shank Length (Decimal Inch) | 1.7717 |
| Flute Length (Decimal Inch) | 4.2520 |
| Flute By Diameter Ratio | 7xD |
| Maximum Drilling Depth (Decimal Inch) | 3.5827 |
