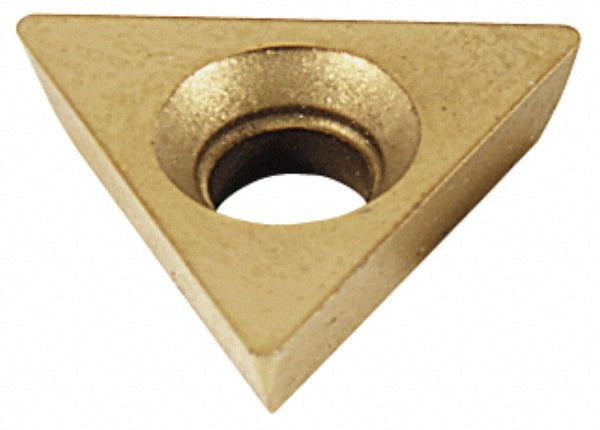

Brand: Widia / Part #: 2824015
Item #: 70731039
Brand: Widia
Model #: 2824015
Product Specifications
| Insert Style | TPCB |
| Insert Size Code | 2151M |
| Insert Material | Diamond Tipped |
| Thickness (Inch) | 3/32 |
| Manufacturer Grade | CPD1 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0640 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0150 |
| Relief Angle | 11.000 |
| Rake | Positive |
| Chipbreaker | Yes |
| Series | TPHB |
| Coating Process | Uncoated |
| Included Angle | 60.00 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 1 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | TPHB2151M |
| Iso Code | TPHB110204M |
| Standards | ISO; ANSI |
| Cutting Direction | Neutral |
| Shape | Triangle |
| Manufacturers Catalog Number | TPHB110204M |
| Single or Multi Tipped | Single Tipped |
| Length (Decimal Inch - 4 Decimals) | 0.4330 |
| Lead Angle | 60 |
| Width (Decimal Inch - 4 Decimals) | 0.4330 |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.0938 |
