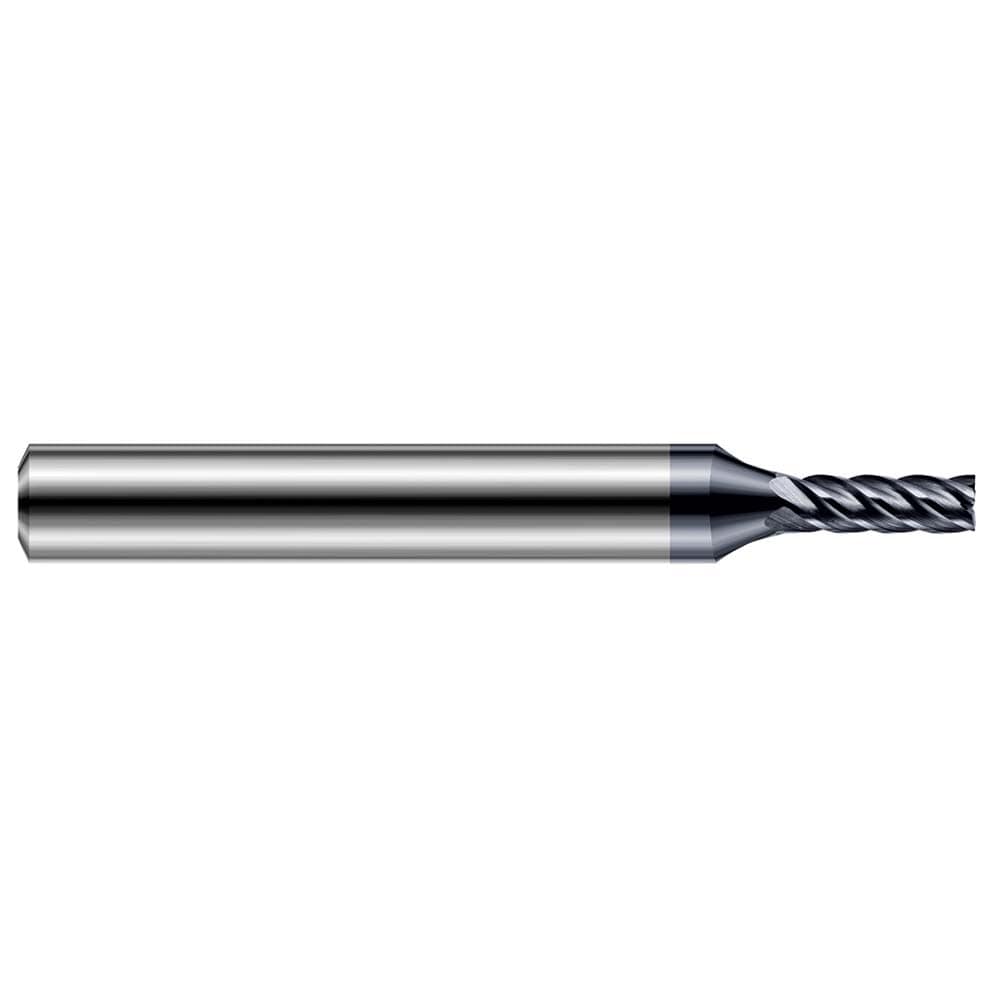

Brand: Harvey Tool / Part #: 824931-C6
Item #: 82843319
Brand: Harvey Tool
Model #: 824931-C6
Product Specifications
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Mill Diameter (mm) | 0.80 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 1/8 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/4 |
| Finish/Coating | AlTiN Nano |
| Overall Length (Inch) | 2-1/2 |
| Chipbreaker | No |
| Variable Helix | Yes |
| Variable Index | No |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.1250 |
| Material Grade | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 2.5000 |
| Flute Direction | Right Hand |
| Flute Type | Upcut |
| Series | End Mills for Hardened Steels - Square - For Steels Up to 55 Rc |
