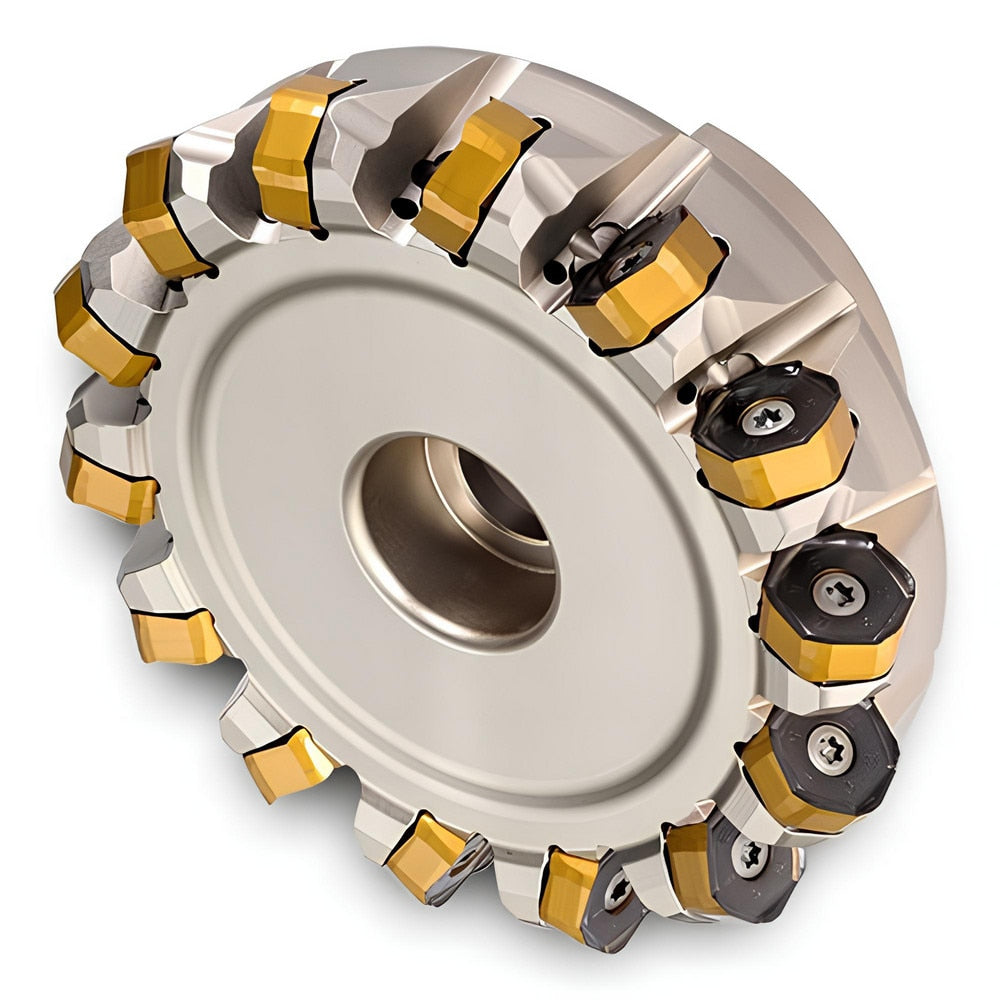

Brand: Ingersoll Cutting Tools / Part #: 2924961
Item #: 96722939
Brand: Ingersoll Cutting Tools
Model #: 2924961
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 2.5000 |
| Minimum Cutting Diameter (Inch) | 2-1/2 |
| Maximum Cutting Diameter (mm) | 76.96 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0300 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Lead Angle | 45.000 |
| Compatible Insert Size Code | 1007 |
| Cutter Style | HN5G |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative |
| Series | HN5G |
| Keyway Width (Decimal Inch) | 0.3750 |
| Keyway Width (Inch) | 3/8 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Pitch Type | Close |
| Tool Application | Chamfering; Facing |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Complete Insert Compatibility | HNGU1007 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | HN5G-25R01 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
| Number Of Flutes | 7 |
