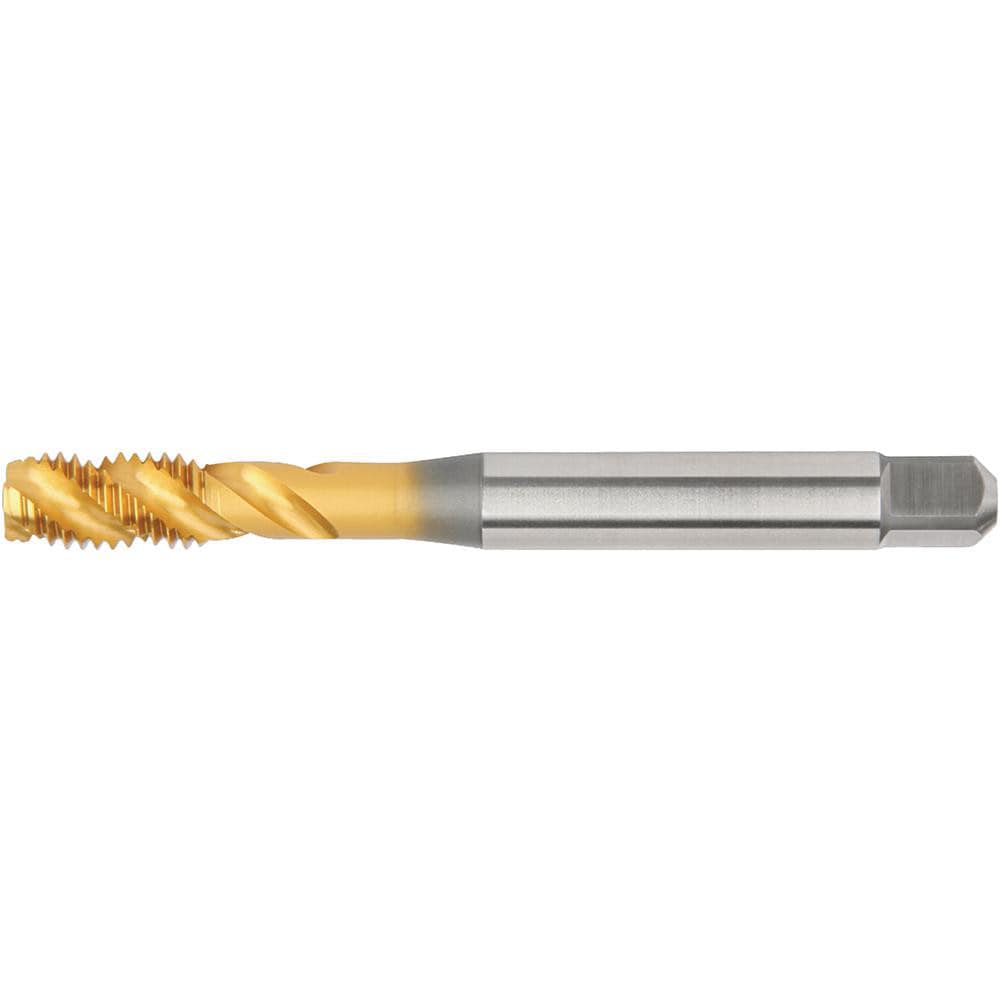

Brand: Widia / Part #: 5402289
Item #: 97463426
Brand: Widia
Model #: 5402289
Product Specifications
| Thread Size (mm) | M30x3.5 |
| Chamfer | Modified Bottoming |
| Thread Limit | D9 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 7 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Thread Depth (mm) | 91.00 |
| Coolant Through | No |
| Thread Length (mm) | 42.00 |
| Overall Length (mm) | 180.0000 |
| Thread Pitch (mm) | 3.50 |
| Thread Standard | Metric |
| Material Grade | WP49EG |
| Shank Diameter (mm) | 22.0000 |
| Square Length (mm) | 21.00 |
| Square Size (mm) | 18.00 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
