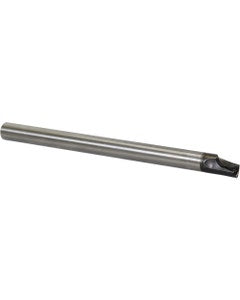

E12QSTLPL0916A Left-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC14273
Brand: Kyocera Precision Tools
Model #: THC14273
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 180 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 180 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 23 mm |
| Rake Angle Radial (GAMF) | -5 Degrees |
| Shank Height (H) | 11 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 157 mm |
| Style | E...STLP-A |
| Functional Width (WF) | 8 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | TPGT1815 | TPMT1815 | TPMX1815 | TPEH1815 | TPGH1815 | TPGB1815 | TPMH1815 | |
| Weight of Item (WT) | 0.6193 |
| Minimum Bore Diameter (DMIN) | 16 mm |
