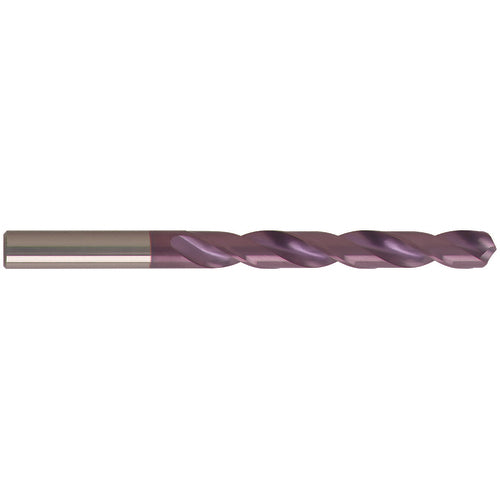

1 mm Dia. × 1 mm Shank × 12 mm Flute Length × 36 mm OAL, Jobber, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill

1 mm Dia. × 1 mm Shank × 12 mm Flute Length × 36 mm OAL, Jobber, 118°, nano-FIREX, 2 Flute, External Coolant, Round Solid Carbide Drill


Item #: GD1124640010000
Brand: Guhring
Model #: 9024640010000

Product Specifications
Drill Bit Size / Cutting Diameter (DC) 1 mm
Cutting Edge Material Carbide
Decimal Equivalent 0.0394″
Tool Type Carbide Drill
Drill Bit Size / Cutting Diameter (DC) - Metric 1 mm
Measurement Type Metric
Length Group Jobber
Series/List # 2464
Coating nano-FIREX
Usable Length (LU) 10.5 mm
Connection Diameter Machine Side (DCONMS) 1 mm
Length Chip Flute (LCF) 12 mm
Coolant Supply Property (CSP) External
Overall Length (OAL) 36 mm
Point Angle (SIG) 118 Degrees
Flute Count (NOF) 2
Flute Helix Angle (FHA) 30 Degrees
Cutting Direction (HAND) Right Hand
Shape Jobber Drill
Body Material Carbide
$17.88
