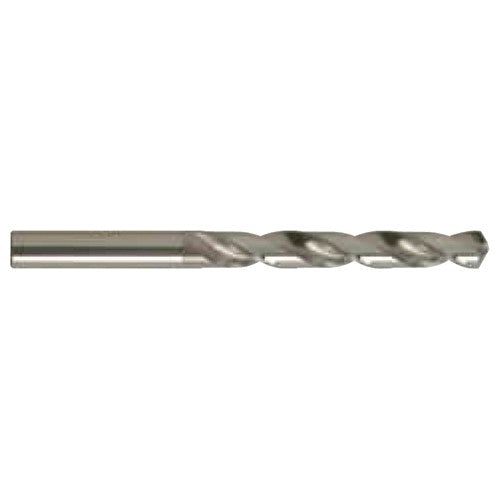

3.7 mm Dia. × 3.7 mm Shank × 39 mm Flute Length × 70 mm OAL, Jobber, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill
Item #: GD1107320037000
Brand: Guhring
Model #: 9007320037000
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3.7 mm |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.1457″ |
| Tool Type | Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.7 mm |
| Measurement Type | Metric |
| Length Group | Jobber |
| Series/List # | 732 |
| Coating | Uncoated |
| Usable Length (LU) | 33.45 mm |
| Connection Diameter Machine Side (DCONMS) | 3.7 mm |
| Length Chip Flute (LCF) | 39 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 70 mm |
| Point Angle (SIG) | 118 Degrees |
| Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shape | Jobber Drill |
| Body Material | Carbide |
