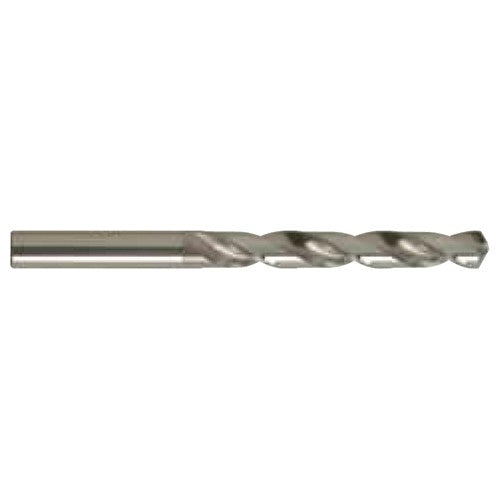

#54 Dia. × 1.4 mm Shank × 18 mm Flute Length × 40 mm OAL, Jobber, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill

#54 Dia. × 1.4 mm Shank × 18 mm Flute Length × 40 mm OAL, Jobber, 118°, Uncoated, 2 Flute, External Coolant, Round Solid Carbide Drill


Item #: GD1107320014000
Brand: Guhring
Model #: 9007320014000

Product Specifications
Drill Bit Size / Cutting Diameter (DC) #54
Cutting Edge Material Carbide
Decimal Equivalent 0.055″
Tool Type Carbide Drill
Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge #54
Measurement Type Wire Gauge
Length Group Jobber
Series/List # 732
Coating Uncoated
Usable Length (LU) 15.9 mm
Connection Diameter Machine Side (DCONMS) 1.4 mm
Length Chip Flute (LCF) 18 mm
Coolant Supply Property (CSP) External
Overall Length (OAL) 40 mm
Point Angle (SIG) 118 Degrees
Flute Count (NOF) 2
Flute Helix Angle (FHA) 30 Degrees
Cutting Direction (HAND) Right Hand
Shape Jobber Drill
Body Material Carbide
$9.64
