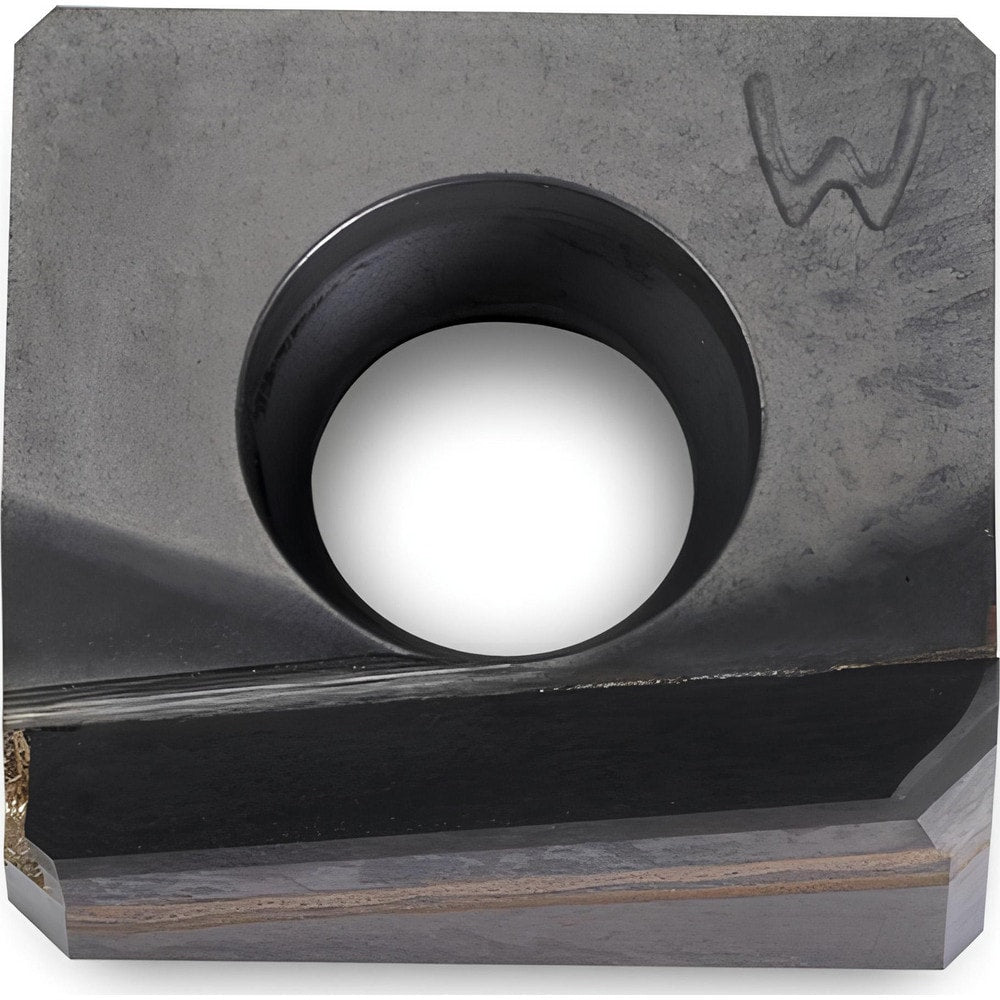

Brand: Ingersoll Cutting Tools / Part #: 6326517
Item #: 67312231
Brand: Ingersoll Cutting Tools
Model #: 6326517
Product Specifications
| Insert Style | ANED |
| Insert Size Code | 1207 |
| Insert Material | PCBN |
| Manufacturer Grade | IN80B |
| Inscribed Circle (Decimal Inch) | 0.4130 |
| Insert Hand | Right Hand |
| Series | ANED |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Number Of Cutting Edges | 1 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron |
| Primary Workpiece Material Code | H; K |
| Ansi Code | ANED1207-CBN |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | ANED1207-CBN IN80B |
| Cutter Series Compatibility | TAQ3 |
| Chip Breaker | CBN |
| Cutting Direction | Right Hand |
| Shape | Rectangle |
| Length of Cut (mm) | 0.5100 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4130 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2640 |
| Multi-Use Tool | No |
| Length (Decimal Inch - 4 Decimals) | 0.4720 |
