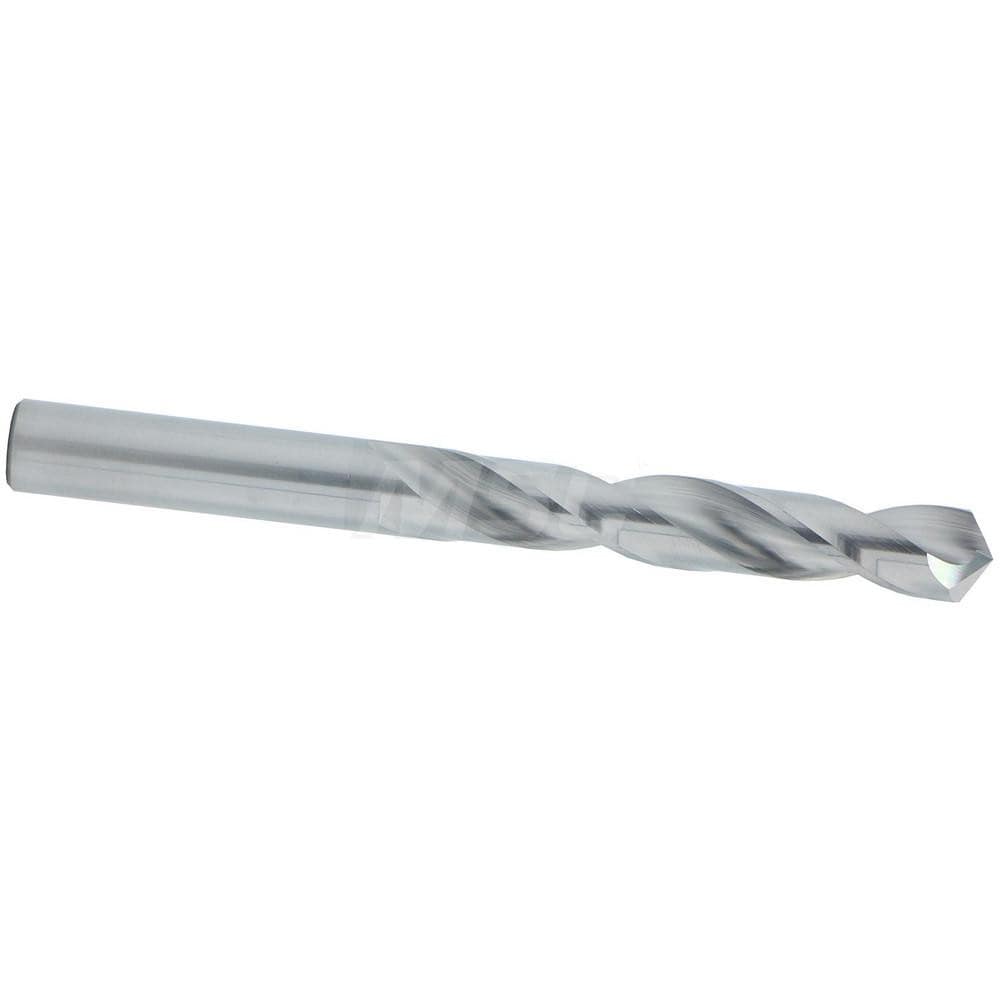

Brand: Hertel / Part #: CBDD-150
Item #: 16691552
Brand: Hertel
Model #: CBDD-150
Product Specifications
| Drill Bit Size (mm) | 11.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Flute Length (Inch) | 2-7/8 |
| Shank Type | Straight |
| Point Type | Standard |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Drill Bit Size (Decimal Inch) | 0.4331 |
| Overall Length (Decimal Inch) | 4-1/2 |
| Cutting Direction | Right Hand |
| Series | 450 |
| Maximum Drilling Depth (Decimal Inch) | 4.5000 |
| Drill Bit Diameter Tolerance | -0.0005 to 0.0000 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Spiral Type | Regular |
| Material Application3 | Non-Ferrous Metal; Aluminum; Highly Abrasive Material; Cast Iron; Plastic |
| Material Grade | C2 |
