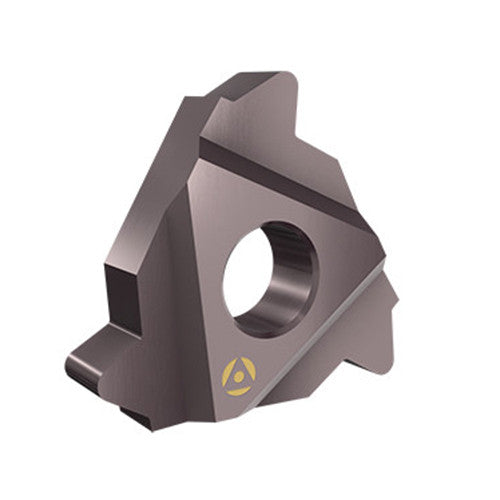

L53 435 EXT AC22F
Item #: FG33043540
Brand: Tool-Flo
Model #: 2412498
| Product Specifications | |
|---|---|
| Thread Standard | API |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Inscribed Circle Diameter (IC) | 5/8″ |
| Insert Style | Laydown (L) |
| Threads per Inch (TPI) | 4 Threads/" |
| Shape | 60° Triangle |
| Corner Radius (RE) | 0.025″ |
| Pitch External | 4″ |
| Insert Thickness (S) | 0.189″ |
| Threads per Inch Minimum (TPIN) | 4 Threads/" |
| Grade | AC22F AlTiN |
| Threads per Inch Maximum (TPIX) | 4 Threads/" |
| Coating | TiAlN |
| Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Application | | Int Ext Threading Laydown | |
| Body Material | Carbide |
