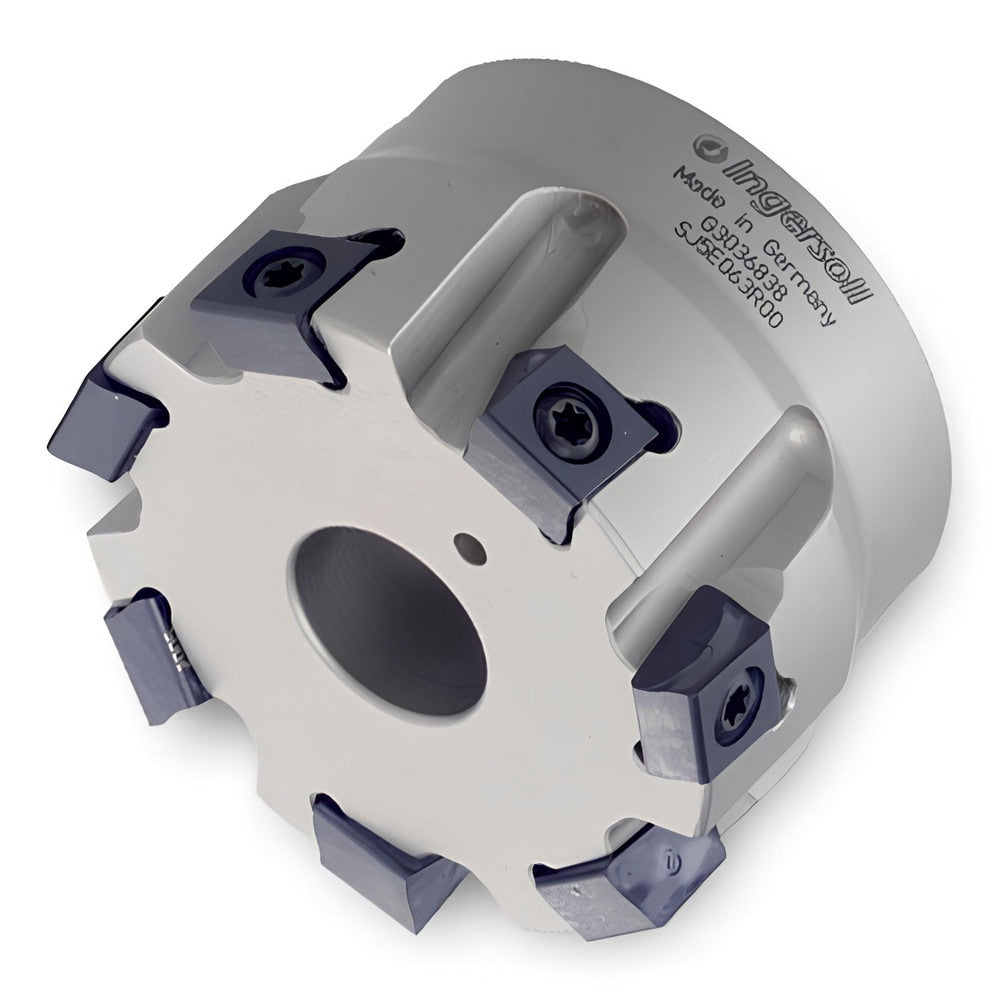

Brand: Ingersoll Cutting Tools / Part #: 3023530
Item #: 96672506
Brand: Ingersoll Cutting Tools
Model #: 3023530
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.0000 |
| Minimum Cutting Diameter (Inch) | 3 |
| Minimum Cutting Diameter (mm) | 76.20 |
| Maximum Cutting Diameter (Inch) | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | 314 |
| Cutter Style | SJ5E |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 deg |
| Rake | Negative |
| Series | SJ5E |
| Overall Height (Inch) | 2-3/8 |
| Overall Height (Decimal Inch) | 2.3750 |
| Keyway Width (Inch) | 3/8 |
| Keyway Width (Decimal Inch) | 0.3750 |
| Pitch Type | Coarse |
| Tool Application | Facing; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Cutting Edge Length (Inch) | 23/64 |
| Cutting Edge Length (Decimal Inch) | 0.3600 |
| Complete Insert Compatibility | DPM314? |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | SJ5E-03R01 |
| Coolant Through | No |
| Number Of Cutter Inserts | 11 |
| Number Of Flutes | 7 |
